Application

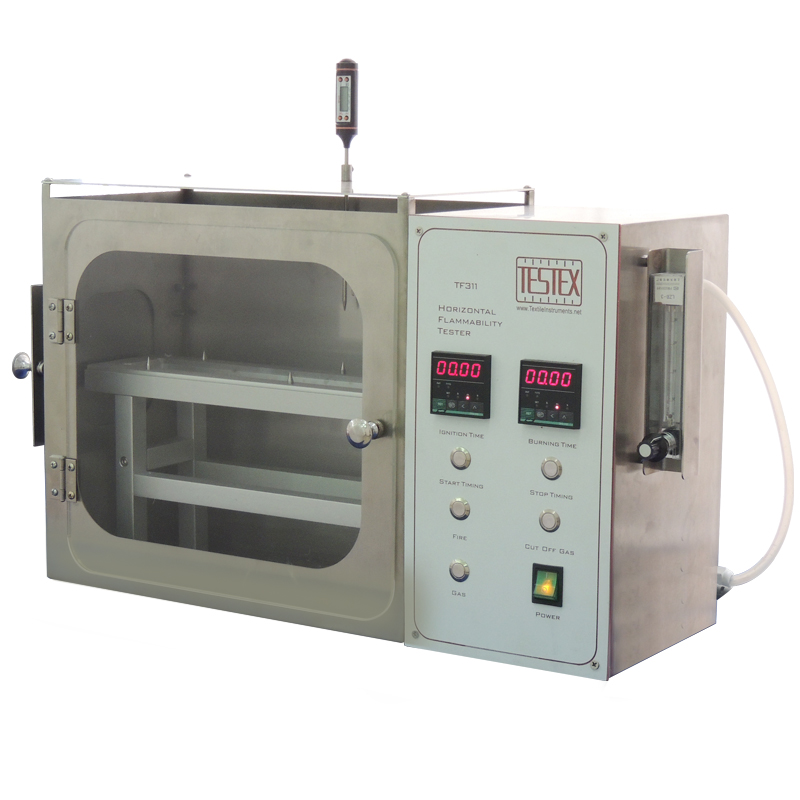

Horizontal Flammability Tester, to determine the comparative burn rates and burn resistance of textiles, particularly those for automotive interior use. Horizontal flammability tester is safe and easy to operate, Comprises draft free stainless steel cabinet with observation window, sample holder and door mounted burner.

Specifications

Fire nozzle diameter: 9.5mm

Fire height: 38mm+/-2

Sample clamp: 360x100mm / Interior Dimension  330x50mm

the sample below: 25mm Pitch between metal wire is 25mm

Marked line: Starting point 38mm / End point 292mm from Igniting point

Nozzle to Sample: 19mm

Standards: ISO 3795, FMVSS 302, DIN 75200, SAE J369, ASTM D5132, JIS D1201, BSAU 1690, GB 8410, PSA-Renault standard D45 1333

Power: 220/110V   50/60Hz   2A

Weight: 35 Kg

Dimensions: 460x200x400mm (LxWxH)
