Application:

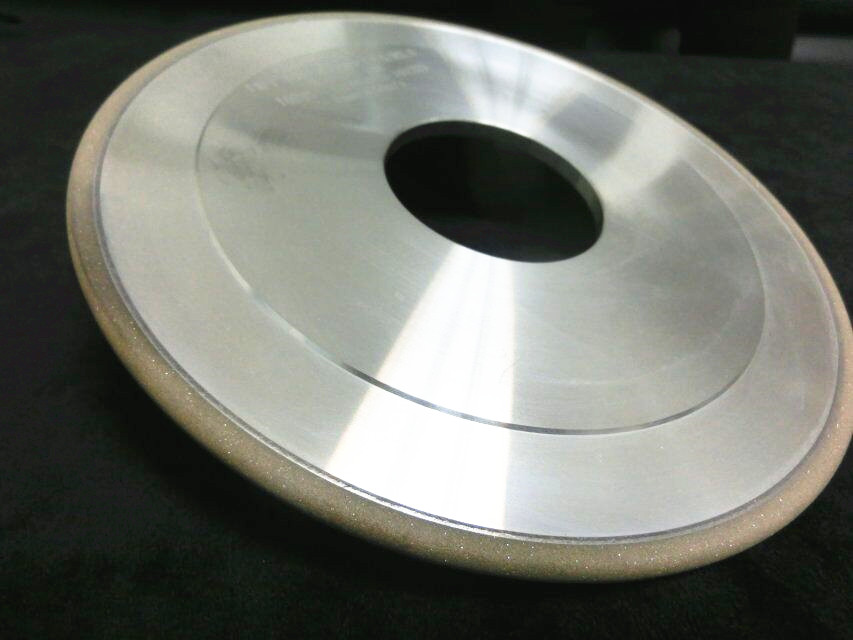

14F1 Diamond grinding wheel Used for machining of conical,cylindrical and flat surface,cylindrical and conical aperatures.

Machining of cylindrical surface details and surface ends by one setting.

Machining of recesses and slots of hard alloyed stamps.

Sharpening and finishing of hard alloyed tools.

the abrasive layer can be made of synthetic diamond powder and CBN powder in resin,metal or vitrified bonds.

D (mm)	U (mm)	T (mm)	X (mm)	H (mm)	J (mm)
30	3	4	Metal bond wheel:  2,5 · 3 · 4 · 5  Resin bond wheel:  2,5 · 3 · 4 · 5	up on request	20
40	2 · 3 · 4	6			25
50	2 · 3 · 4	6			30
60	2 · 3 · 4	6			35
75	2 · 3 · 4	6			50
100	2 · 3 · 4	6			50
125	2 · 3 · 4	6			70
150	2 · 3	6			100
	4 · 5	6 · 8			120
According to customers' requirements
