| After-sales Service Provided: | Overseas third-party support available |
|---|---|
| Certification: | ISO9001 |
| Model Number: | VLA/B |
| Brand Name: | KingFeng |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
Quick Details
Specifications
the machine is mainly used to remove broken taps,drills,or enlarge a hole on the alloy steel,quenched steel,carbide and other materials difficult to be machined.It is also possible to make holes and grooves of pecuilar shapes by using special electrode,or to imprint and make markings on roller.this machine featuers advanced control system and low consumption,and arbitrary rotation of its machine head, which makes it possible to process shant holes,and easy to run,reliable in operation and enjoys a wide range of application.

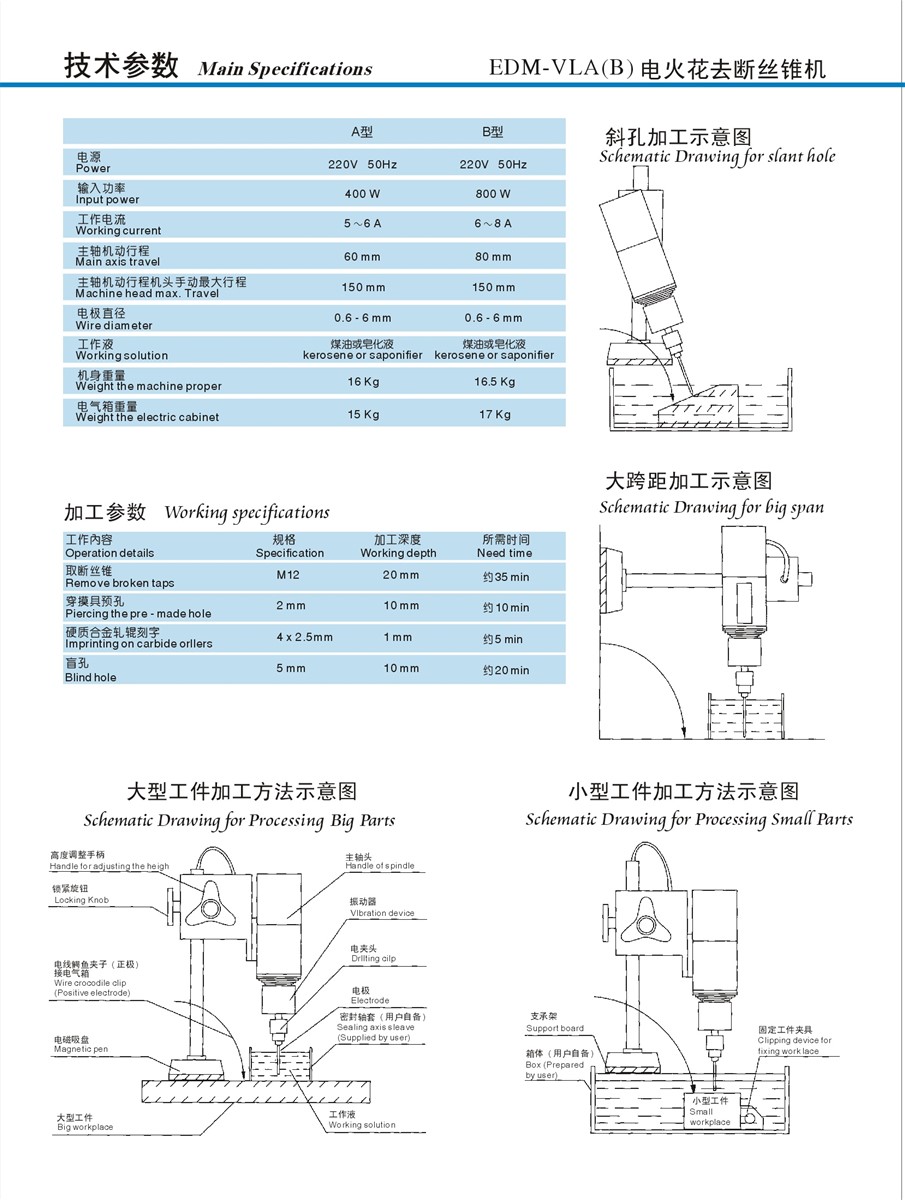

Main specification
Model |
A |
Power |
220V/50Hz |
Input power |
400W |
Workong current |
5--6A |
Main axis travel |
60mm |
Machine head |
150mm |
Wire diameter |
0.6-6.0mm |
Working solution |
Kerosene or saponifier |
Weight the machine proper |
16kg |
Weight the electric cabinet |
15kg |
Main specification
Model |
B |
Power |
220V/50Hz |
Input power |
800W |
Workong current |
6--8A |
Main axis travel |
80mm |
Machine head |
150mm |
Wire diameter |
0.6-6.0mm |
Working solution |
Kerosene or saponifier |
Weight the machine proper |
16.5kg |
Weight the electric cabinet |
17kg |
Working specification
Operation details |
Specification |
Working depth |
Need time |
Remove broken taps |
M12 |
20mm |
35min |
Piercing the pre-made hole |
2mm |
10mm |
10min |
Imprinting on carbide orllers |
4×2.5mm |
1mm |
5min |
Blind hole |
5mm |
10mm |
20min |
