| Certification: | ISO 9001-9004 |
|---|---|
| Application: | Refrigeration Parts |
| Type: | Tube tools |
| Model Number: | A5-Series |
| Brand Name: | LANBO |
| Place of Origin: | China (Mainland) |
| 5- Rolls: | Parallel expansion |
| adjustable ball bearing collar: | suit light wall tubes |
Quick Details
Specifications

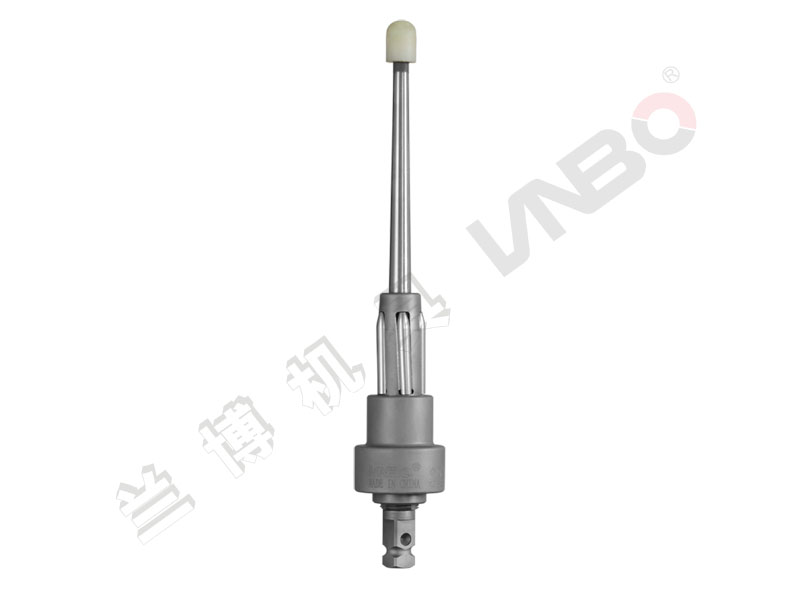

A5-Series Condenser 5-Roll Expander – 12.7mm to 38.1mm
Application:
Lanbo's A5 Series 5-Roll Tube Expanders are ideal for expanding thin-wall tubes in heat Exchangers, especially surface condensers with stainless steel or titanium Tubes.
Features:
with threaded collars, A5 Series 5-Roll Tube Expanders enable users to Adjust the roll length based on the application. Our A5-Series expanders are Available for tubes of diameter from 12.7mm to 38.1mm. the A Series expanders Are available in standard reach with 38mm and 57mm rollers.
Note:*Please refer to our A-Series Tube Expanders for standard 3-roll expanders.
** for applications requiring long reach, please see our H5 Series.
*** Hexagonal Connector is available upon request, please contact our technical Sales experts.
Expander size table(mm)
Tube Dimension |
Expansion RangeD |
Square □S (in) | |||||||
OD (in) |
Tube Wall |
Min. |
Roller Length M=38(1-1/2") |
Roller Length M=57(2-1/2") | |||||
Max. |
Effective Length A |
Part # |
Max. |
Effective Length A |
Part # | ||||
12.7(1/2") |
0.51 |
11.5 |
13.3 |
33 |
A507 |
－ |
－ |
－ |
9.5 (3/8") |
15.9 (5/8") |
1.47 |
12.3 |
14.1 |
A509 | |||||
1.24 | |||||||||
1.07 |
13.1 |
14.9 |
32 |
A511 | |||||
0.89 | |||||||||
0.81 |
13.9 |
16.0 |
A513 |
15.7 |
51 |
A513M | |||
0.71 | |||||||||
0.64 | |||||||||
19.0 (3/4") |
1.65 |
14.7 |
16.8 |
A515 |
16.5 |
A515M | |||
1.47 | |||||||||
1.24 |
15.5 |
17.8 |
A517 |
17.5 |
A517M | ||||
1.07 | |||||||||
0.89 |
16.3 |
18.7 |
A519 |
18.3 |
A519M | ||||
0.81 | |||||||||
22.2 (7/8") |
2.41 | ||||||||
2.11 |
17.1 |
19.5 |
A521 |
19.1 |
A521M | ||||
1.83 | |||||||||
1.65 |
17.9 |
20.5 |
30 |
A523 |
20.1 |
49 |
A523M | ||
1.47 | |||||||||
1.24 |
18.7 |
21.5 |
A525 |
21.1 |
A525M | ||||
1.07 |
19.5 |
22.3 |
A527 |
21.9 |
A527M | ||||
0.89 | |||||||||
25.4 (1") |
2.77 |
18.7 |
21.5 |
A525 |
21.1 |
A525M | |||
2.41 |
19.5 |
22.3 |
A527 |
21.9 |
A527M | ||||
2.11 |
20.2 |
23.2 |
29 |
A529 |
22.7 |
48 |
A529M | ||
1.83 | |||||||||
1.65 |
21.0 |
24.0 |
A531 |
23.5 |
A531M | ||||
1.47 |
21.4 |
－ |
－ |
－ |
24.1 |
A532M |
12.7 (1/2") | ||
1.24 |
22.2 |
24.9 |
A534M | ||||||
1.07 | |||||||||
31.8 (1-1/4") |
3.40 |
23.0 |
－ |
－ |
－ |
25.9 |
A536M | ||
3.05 |
23.8 |
26.9 |
46 |
A538M | |||||
2.77 |
24.6 |
27.6 |
A540M | ||||||
2.41 |
25.4 |
28.6 |
A542M | ||||||
2.11 |
26.2 |
29.4 |
A544M | ||||||
1.83 |
27.0 |
30.4 |
A546M | ||||||
1.65 | |||||||||
1.47 |
27.8 |
31.2 |
A548M | ||||||
1.24 | |||||||||
38.1 (1-1/2") |
4.19 |
－ |
－ |
－ | |||||
3.76 |
28.6 |
32.0 |
A550M | ||||||
3.40 |
29.4 |
33.2 |
A552M | ||||||
