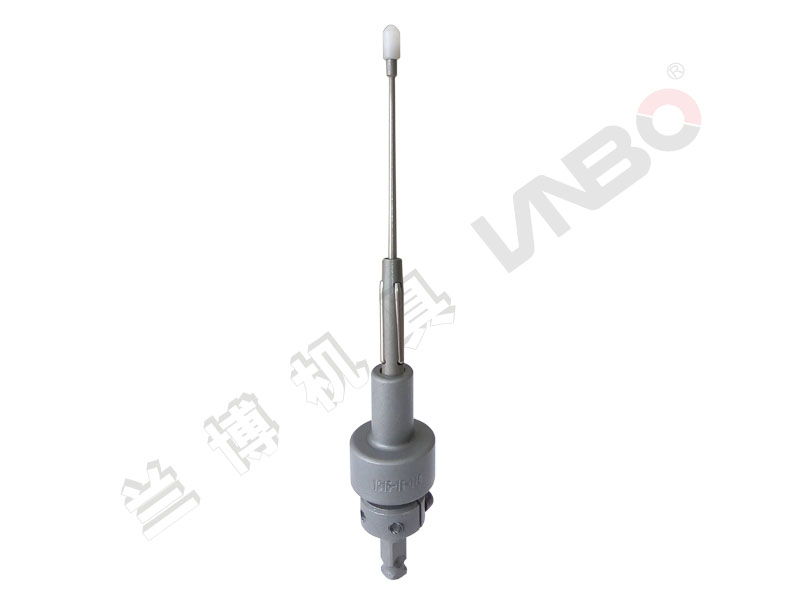

P-Series Tube Expander – 6.4mm to 12.7mm

Application:

P-Series Tube Expanders were designed for very small Ferrous and Non-Ferrous tubes Generally found in Oil Coolers, Pre-heaters, Air conditioning units and Radiators.



Features:

with threaded collars, P-series expanders enable users to adjust the roll Length based on the application. Our P-Series expanders are available for tubes of diameter from 6.4mm to 12.7mm. P-Series Expanders have Captive Rolls which Minimize the chance that Rolls were lost when Pulling the Expander out from the Tubes.



Note:*for tubes with larger Diameters, please see our A-series tube expanders.

** for applications requiring long reach, please see our PH Series.

*** Hexagonal Connector is available upon request, please contact our Technical sales experts.

Expander size table(mm)

Tube Dimension		Expansion RangeD		Effective Roller LengthA				Part #	Square □S (in)
OD (in)	Tube Wall	Min.	Max.	M=13(1/2")		M=25(1")
				Min.	Max	Min	Max
6.4 (1/4")	0.89	4.2	5.2	0	9.5	－	－	P000	6.3 (1/4")
	0.71	4.6	5.6	0	9.5	－	－	P00
	0.64	5.0	6.0	0	9.5	－	－	P0
	0.56
	0.51
	0.46
9.5 (3/8")	1.83	5.4	6.4	0	9.5	13	22	P11	6.3 (1/4")
	1.65	5.8	6.8					P12
	1.47	6.2	7.2					P13
	1.24	6.6	7.7	－	－	13	22	P14
	1.07	7.0	8.1					P15
	0.89	7.4	8.5					P16
	0.81
	0.71	7.8	9.0					P17
	0.64
12.7 (1/2")	1.83	8.2	9.4	－	－	13	22	P18	6.3 (1/4")
	1.65	8.6	9.8					P19
	1.47	9.0	10.2					P20
