Application

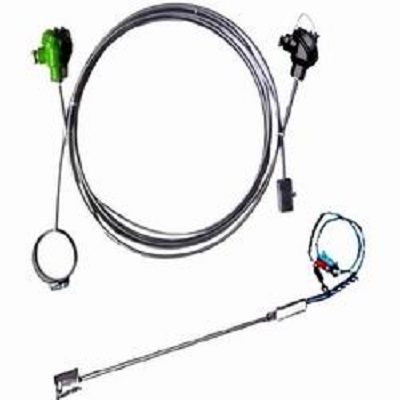

It is used to measure surface temperature of boiler wall, tube wall or other cylinders.
Main Technical Parameters
Accuracy Class: I, II
Nominal Pressure: Normal Pressure
Bending Radius: R≥5D
Type & Specification
|
Type |
Graduation |
Measuring Range℃ |
Measuring End |
Specification |
|
|
|
|
||||
|
WRNK-191M WRNK2-191M |
K |
0~800 |
Insulation Type |
1000 |
1000 |
|
WREK-191M WREK2-191M |
E |
0~600 |
|||
|
WRNK-192M WRNK2-192M |
K |
0~800 |
Shell-connection Type |
||
|
WREK-192M WREK2-192M |
E |
0~600 |
|||
1) Class I temperature shall be ordered according to agreements.
2) Protection tube material is 1Cr18Ni9Ti, and we also produce the tube of other material.
Mounting Ways & Size
Mounting Method:
It is directly welded on boiler wall.
M8 Screw Fastening
PLS indicate size of R in type selection. (i.e. Diameter of tube wall or boiler wall)
