Application:

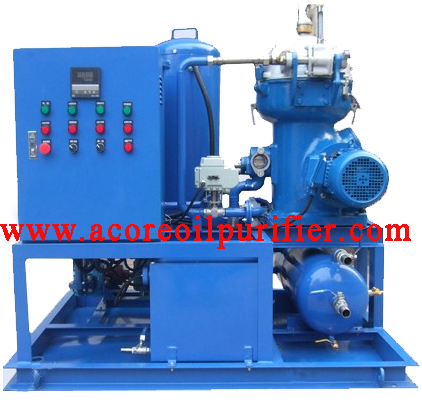

Centrifugal Oil Purifier) is mainly used for the purification of turbine Lube oils, which can effectively remove the water and impurities from the oil, Play a role in the clarification and purification, reduce operating costs and Extend the life of the engine. Meanwhile, the centrifugal oil purifier also can be applied to high Viscosity lube oils, heavy diesel oils, hydraulic oil clarification and Purification to slow wear of diesel engine or other types of machines, and Extend the service life of the machine and oil. Disc-type Centrifugal Oil Separator Can also be applied to other areas of non-homogeneous suspensions or emulsions Separation.

Technical index:

Model		Unit	DCS-10	DCS-20	DCS-30	DCS-40	DCS-60	DCS-80	DCS-100
Capacity		L/hr	1000	2000	3000	4000	6000	8000	100000
Separating-factor		a/g	8000	8400	8800	9400	10000	10600	11200
Running speed		r/min	8300
Particles		μ	1
Water content		ppm	≤100
Pressure		MPa	≤0.2
Temperature			10-80
Cleanness			NAS 6 grade
Power Supply			380V, 50HZ, 3PH (Customerized)
Sludge-discharge			Automatic
Motor Power		kW	4	6	8	8	12	16	20
Heater Power		kW	24	27	30	35	45	55	65
Total Power		kW	28	33	38	43	57	71	85
Weight		Kgs	480	650	850	900	1000	1100	1200
Dimension	L	mm	1000	1000	1100	1200	1300	1350	1400
	W	mm	700	750	800	900	950	1000	1100
	H	mm	1000	1100	1100	1200	1250	1300	1350
