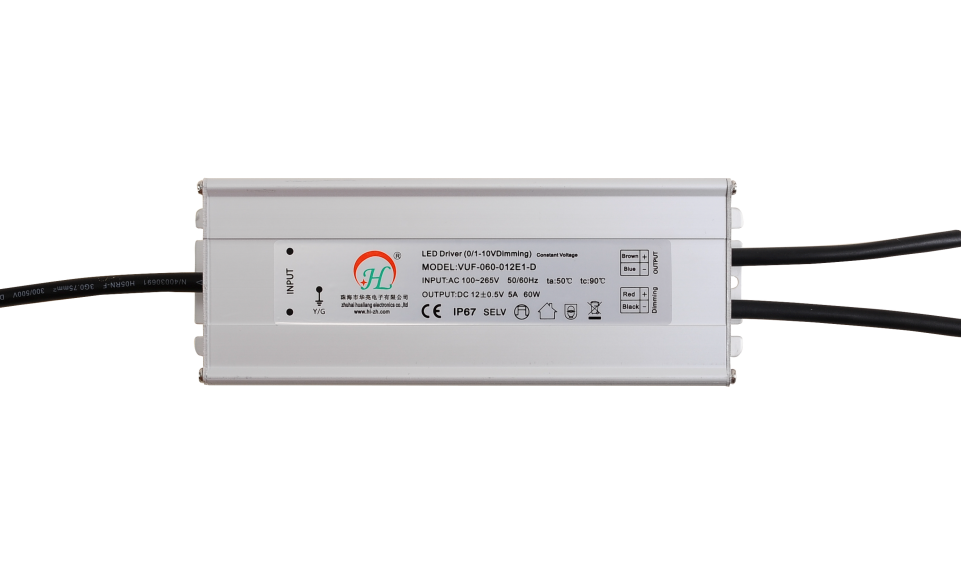

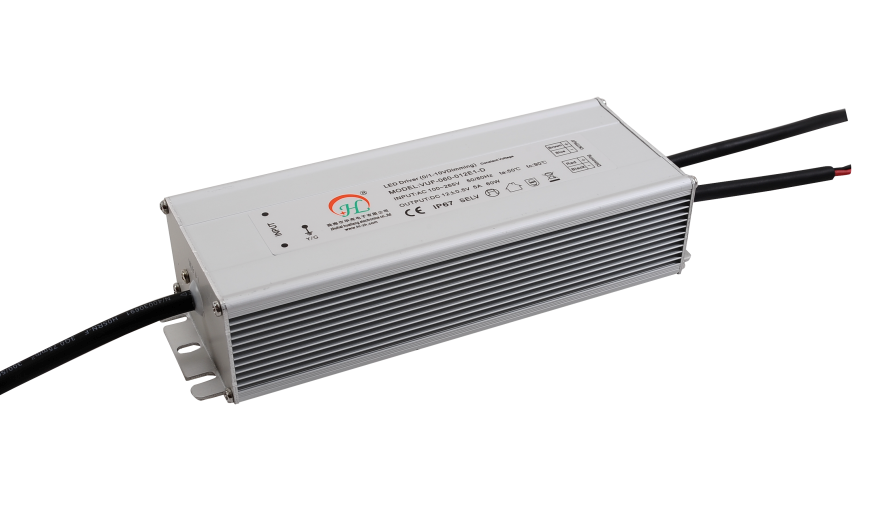

Hualiang 60W 12VLED dimmable driver 0-10V PMW or Resistance signal power supply

MODEL		VUF-060-012E1-D
OUTPUT	DC VOLTAGE	12V
	RATED CURRENT	5A
	VOLTAGE RANGE	6.5-12V
	RATED POWER	60W
	RIPPLE&NOISE(max)	<1.5V
	VOLTAGE TOLERANCE	±0.5V
INPUT	VOLTAGE RANGE	100-265VAC
	FREQUENCY RANGE	47-63Hz
	POWER FACTOR(Typ.)	≥0.92
	EFFICIENCY(Typ.)	83%
	AC CURRENT(Typ.)	0.34A/220VAC
PROTECTION	Short circuit	Protection type:Hiccpe   mode,recovers automatically after condition is removed
	Overload	100-120%
ENVIRONMENT	WORKING TEMP.	-30~+50℃ (Refer to output load derating   curve)
	INGRESS PROTECTION	IP67 design for indoor or   outdoor installations
	STORAGE TEMP	-40~+80℃
SAFETY&EMC	SAFETY STANDARDS	EN61347-1;EN61347-2-13;SELV;IP67   approved
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC  I/P-FG:2KVAC O/P-FG:0.5KVAC
	EMC   Test Standards	EN55015;EN61000-3-2;EN61000-3-3
		EN61547
DIMMABLE	Three in one dimming   function(0/1-10Vdcor   resistance)
NOTE	1.All parameters NOT   specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
	2.Ripple&noise are measured at 20MHz of bandwidth by using a   12" twisted pair-wire terminated with a 0.1uf&47uf parallel
	capacitor.
	3.Tolerance:includes set up tolerance,line regulation and load   regulation.
