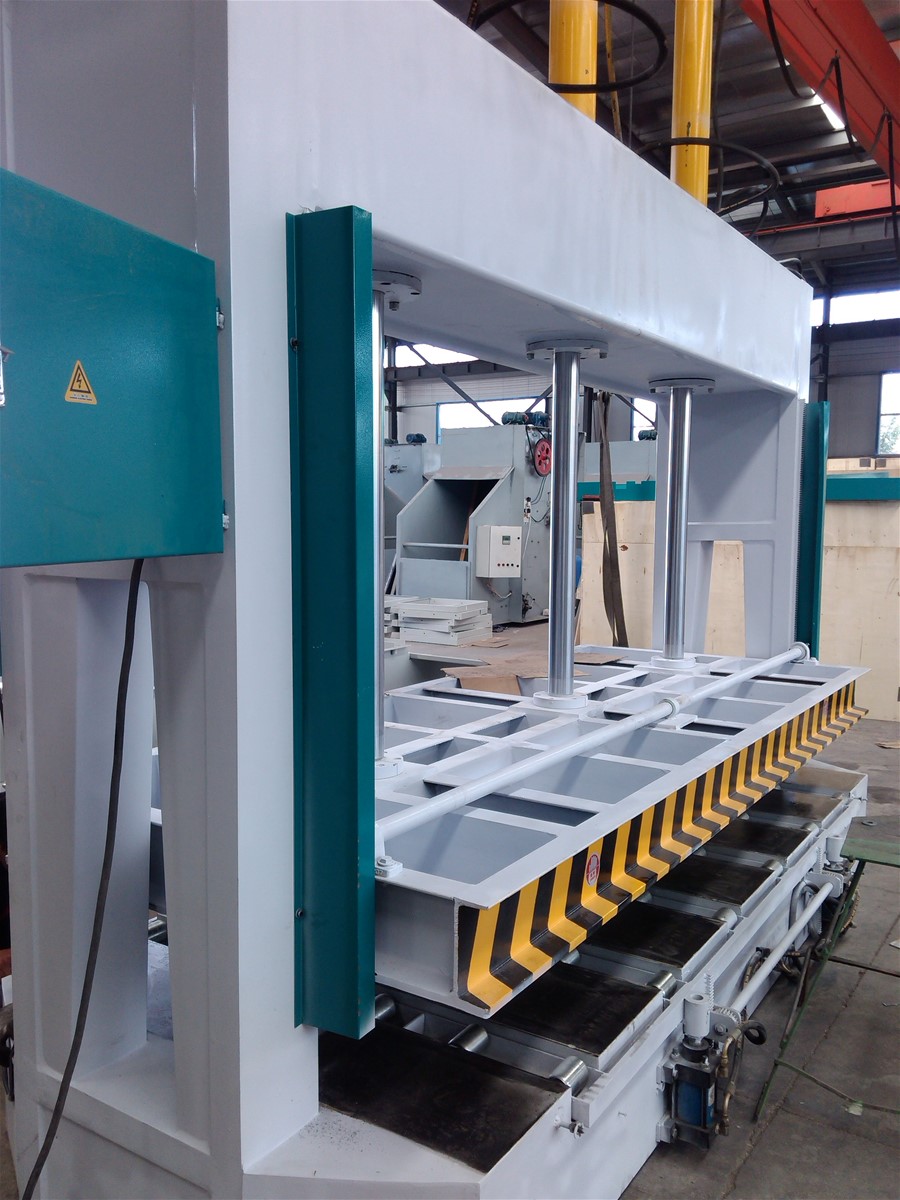

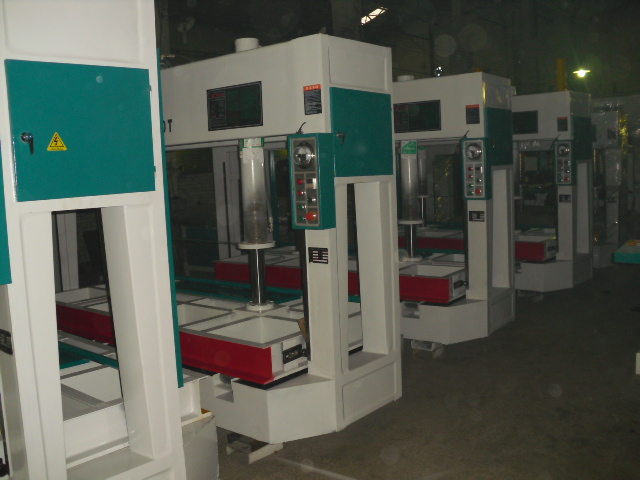

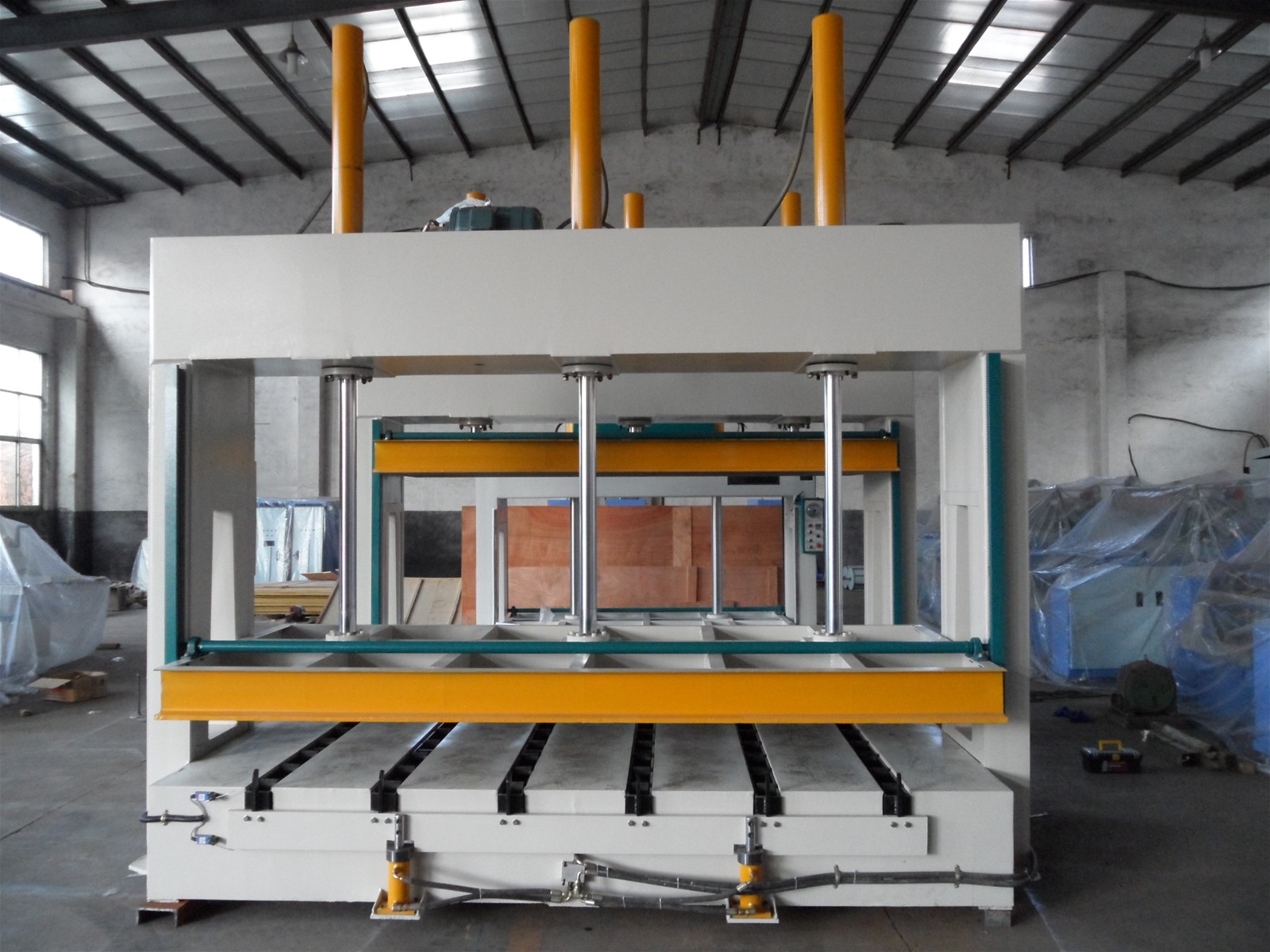

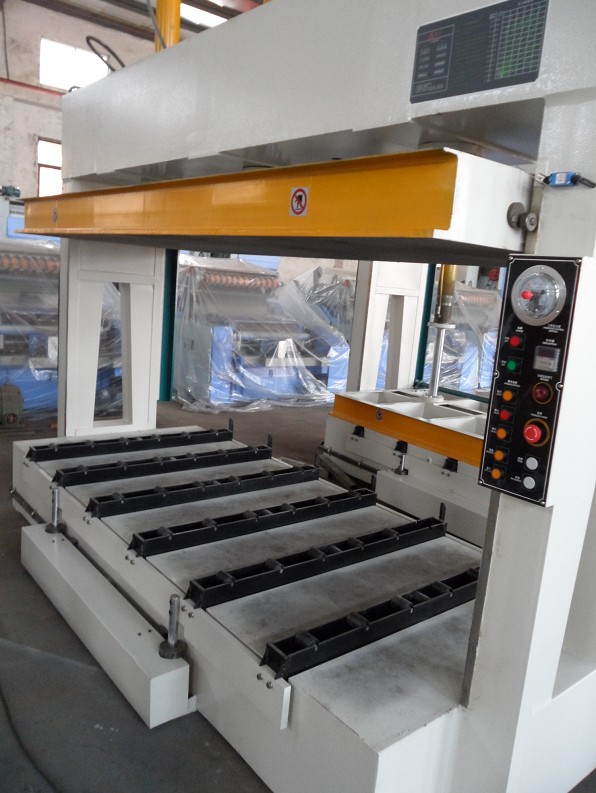

Brief Introduction of Press machine :



1) this machine is mainly used for Veneer press of all kinds of plane wood ware and prepressing and moulding. the press quality is good, speed-fast and high efficient. It is widely used in furniture industry and other panel production industry.



2) this machine is mainly composed of oil pressure system, electrical control system, platen balance mechanism, platen and machine body.



Specification of Press machine :



Max pressure	50 T
Dimension of the platen	1250*2500mm
Working speed	180mm/min
Total power	5.5kw
Oeverall dimensions	2860*1300*2350mm
Net Weight	2650KGS
Stroke	1000mm ( optional:1300mm)
