| Model Number: | D Type Rail Clip |
|---|---|
| Brand Name: | ALEX |
| Place of Origin: | China (Mainland) |
| Material: | 60Si2MnA, 60Si2CrA, 55Si2Mn |
| Type: | Rail Clip |
| Weight: | 0.790Kg |
| Fatigue Test: | 5 million cycles without breaking or cracking |
| Toe Load:: | more than 2750 bls (Deflection 11.1mm) |
| Surface:: | Nataral color or as customer |
| Certification:: | ISO9001:2008 |
| Standard:: | UIC,DIN,JIS,AREMA,ISCR,GB,etc |
Quick Details
Specifications

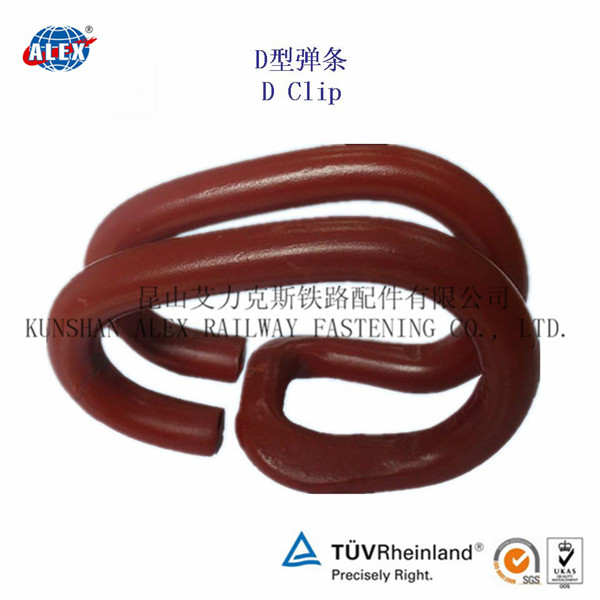

D Clip for Railway Fastening System
Product Description
Name |
Rail Clip | |||
Type |
E clip (e1809, e2006,e2007,e2009,etc) | |||
Skl clip (skl1,skl3,skl12,skl14) | ||||
or the type by customers' drawings | ||||
Material |
60Si2MnA |
60Si2CrA |
55Si2Mn |
38Si7 |
Chemical composition(%) |
C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 |
C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 |
C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 |
C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
Hardness |
for e clip: 44-48HRC for skl clip: 42-47HRC | |||
Fatigue life |
for Dia.18 is 3 millions cycles without breaking for Dia.20 is 5 millions cycles without breaking | |||
Surface |
Plain (oiled), Oxide black, color painting, HDG, Zinc Plating... | |||
Standard refers |
DIN17221, BS970, GB/T1222 | |||
