| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 2 Years |
| Certification: | ISO |
| Weight: | Based |
| Dimension(L*W*H): | Seller's Final Confirmation |
| Power(W): | 2*30kW,2*45kW,2*37kW,45kW |
| Model Number: | WCBD400C |
| Brand Name: | HC |
| Place of Origin: | China (Mainland) |
| Power Type: | Electric |
| Condition: | New |

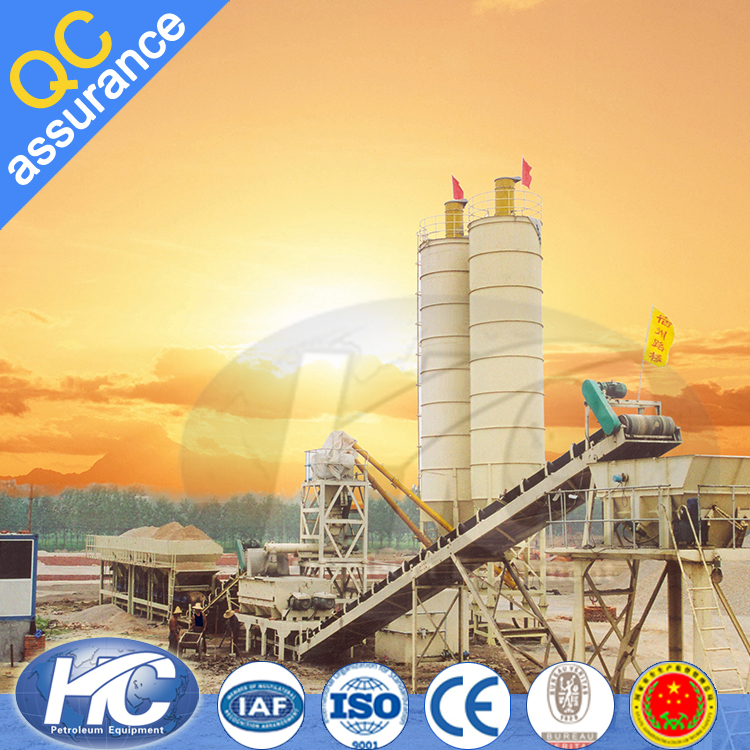

| Item name: | Chinese forced stabilized soil mixing plant / soil mixing equipment |
| Marketing mode: | Factory outlet |
| Industry experience: | 12Year |
| Certificate: | ISO, API |
| Rate production capacity: | 300t/h,400 t/h,500t/h,600t/h |
| Cold aggregate hopper capacity: | 10m3 |
| Finished mixture silo capacity: | 7m3 |
| Aggregate weighing type: | Electronic weighing belt |
| Filler weighing type: | Electronic screw conveyor |
| Water weighing type: | Frequency conversion |
Quick Details
Specifications
the main features of sTabilized soil mixing plant:
| Technical Specification |
Model | |||
| WCBD400C | WCBD600 | WCBD500B | ||
| Rate
Production Capacity |
400 t/h | 600t/h | 500t/h | |
| Cold
Aggregate Hopper qty. |
4 | 5 | 4 | |
| Cold
Aggregate Hopper capacity |
10m3 | 10m3 | 10m3 | |
| Filler
Silo Capacity |
65m3 | 2×65m3 | 65m3 | |
| Mixer capacity | 2×30kW | 2×45kW | 2×37kW | |
| Finished
Mixture Silo capacity |
7m3 | 7m3 | 7m3 | |
| Maximum
Aggregate Size |
45 mm | 60mm | 60 mm | |
| Aggregate
Weighing Type |
Electronic Weighing belt |
Electronic Weighing belt |
Electronic Weighing belt | |
| Filler
Weighing Type |
Electronic Screw conveyor |
Electronic Screw conveyor |
Electronic Screw conveyor | |
| Water weighing type | Frequency Conversion |
Frequency Conversion |
Frequency Conversion | |
| Total
Installation Power |
115.12kW | 167.37kW | 135.12kW | |
| Dimension | 46m×22m×17m | 52m×22m×17m | 48m×22m×17m | |
