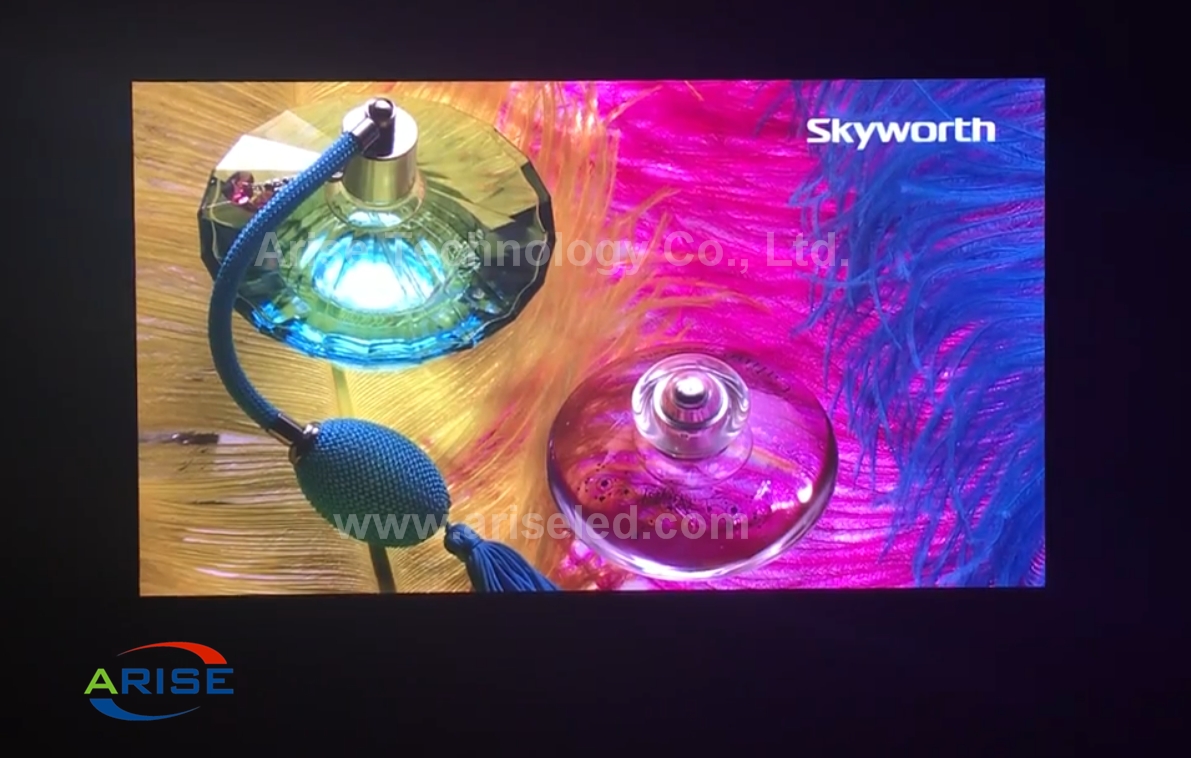

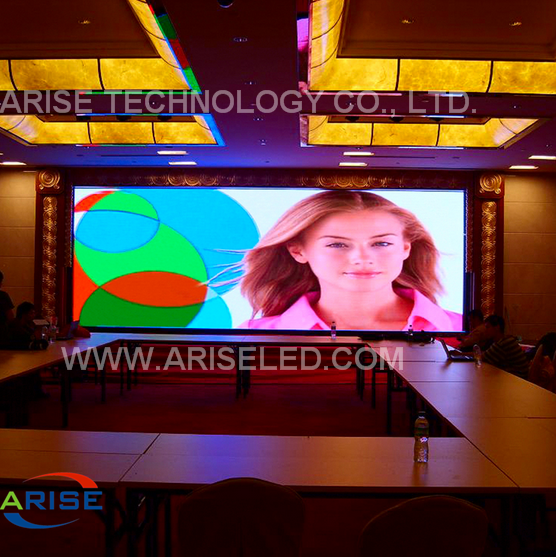

Indoor P1.5mm LED display/P1.5mm LED TV/HD P1.5mm LED screen,P1.2mm,P1.6mm,P1.667mm,P1.8mm,P1.875mm,P1.9mm

Arise Technology Co., Ltd



Small pixel pitch LED display:

Pixel pitches: P1.56mm, P1.6mm, P1.8mm, P1.9mm, and P2.0mm, these LED display screens are small pixel pitch LED displays, they have seamless assembly design, long life span, and deliver sharp and clear display content for a variety of applications.



Key features of the LED display:

1, Flexible construction: Easy to piece together to play standard 4:3 and 16:9 videos.

2, Seamlessness: Die-cast aluminum panels, strong design and precision CNC minimizes errors within 0.05mm.

3, Long lifespan: Low-voltage and efficient power supply ensure the long time span of the small pixel pitch LED displays.

4, Noiseless: Efficient IC drive, optimized PCB layout and fan-less design contribute to a silent operation.

5, Perfect image: No flickering, bright lines or dark lines, brings much more clearer, sharper images.

6, Industrialized production: We use our patented technology, independent die sinking, precise welding and automatic processing to make the LED displays.

7, Color Uniformity: the small pixel pitch LED display has consistent and uniform color even while with low power consumption and low temperature rises.

8, No black screen during use: Reliable power supply and power distribution system means data is transmitted for stable images.

9, Safe maintenance: It supports hot swapping, making it convenient to maintain.







Odule parameters		Pixel pitch	1.5mm
		Pixel density	444444dots/m2
		LED shape	SMD 3 in 1
		LED configuration	1R1G1B
		Module Resolution	160*160
		Module Size	240*240
		Drive mode	Static
Cabinet parameters		Cabinet Resolution	320*320
		Cabinet Size	480*480
		Module Quantity	4pcs
		Cabinet Weight	12kg/pcs
Display parameters	Optical	Brightness	≥3000cd/m2
		Brightness adjustment	Red/Green and Blue4096Grade/Each
		Viewing angle	H/V 140/140
		Best viewing distance	1m-9m
		Display color	16.7 million
		Grey Scale	10bits/1024levels
	Power	Max Power Consumption	1000w/m2
		Ave Power Consumption	500m/m2
		Working Voltage	AC 220V±10%
	Control System	Frame Frequency	60-85HZ
		Refresh Rate	1000-3000HZ
		Color Temperature	5000-9300K
		Signal Input	Composite /S-video/Component/VGA/DVI/HDMI/SDI/HD_SDI/etc
		Controlling System	PCTV non-linear editting card+DVI display card+main controller+optical fiber transmission(optical)
		Controlling Distance	by CAT5 Cable:100M/ Multi-Mode fiber: 500M/ Single-Mode fiber: 10 KM
	Reliability	Working Temperature	-20+65℃
		Working Humidity	10-90%RH
		Life Span	100000hours
		MTBF(Ave No Failure Time)	5000hours
		Pixel Failing Rate	0.01%
		IP rate	IP31



Arise Technology also have more LED displays for your projects:

?        Outdoor fix installation LED displays: P4/P4.8/P5/ P6/ P6.67/ P8/ P10 (DIP)/ P10 (SMD)/ P10.4/ P12/ P16/ P20/ P25/ P31.25/ P40/ P50;

?        Indoor fix installation LED displays: P1.6/ P1.667/ P1.8/ P1.875/ P1.9/ P2/ P2.5/ P3/ P3.9/ P4/ P4.8/ P5/ P6/ P6.67/ P7.62/ P8/ P10

?        Outdoor Rental LED displays: P3.9/ P4.8/ P5/ P6/ P6.25/ P6.67/ P6.94/ P7.8/ P8/ P8.9/ P10

?        Indoor Rental LED displays: P2/ P2.5/ P3/ P3.125/ P3.75/ P3.91/ P4/ P4.81/ P5/ P6/ P6.25/ P6.4/ P7.62/ P8/ P10

?        Perimeter LED Displays: P6/ P8/ P10/ P12/ P12.5/ P16

?        LED Advertising Player/Kiosk LED displays: P2.5/ P3/ P4/ P5/ P5.3/ P6

?        Stair LED displays: P6/ P6.67/ P7.62/ P10/ P16/ P18/ P20

?        Transparent LED display: p3.9/p7.81/p8/p10
