| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Outline Dimension: | 3660*2260*2800mm |
| Discharge Way: | Pneumatic or manual |
| Working Cycle Period: | 60S |
| Water Supply Mode: | 2.2kw |
| Speed of Mixing Drum: | 25r/min |
| Reclaiming capacity: | 1000L |
| Charging Capacity: | 1600L |
| Mixing Power: | 37kw |
| Motor Power: | 37kw |
| Model Number: | JS1000 |
| Brand Name: | YUJIE |
| Place of Origin: | China (Mainland) |
| Condition: | New |
| Productivity: | 50m3/h |
| Mixing blade number: | 7*2 |
| Mixing blade material: | High chrome alloy |
| Hoist motor: | 11kw |
| Lifting speed: | 36m/min |
| Weight: | 7800kg |
| Price: | Competitive low |
| Structure: | Compact |
| Performance: | Reliable |
| Color: | Customer request |
Quick Details
Specifications

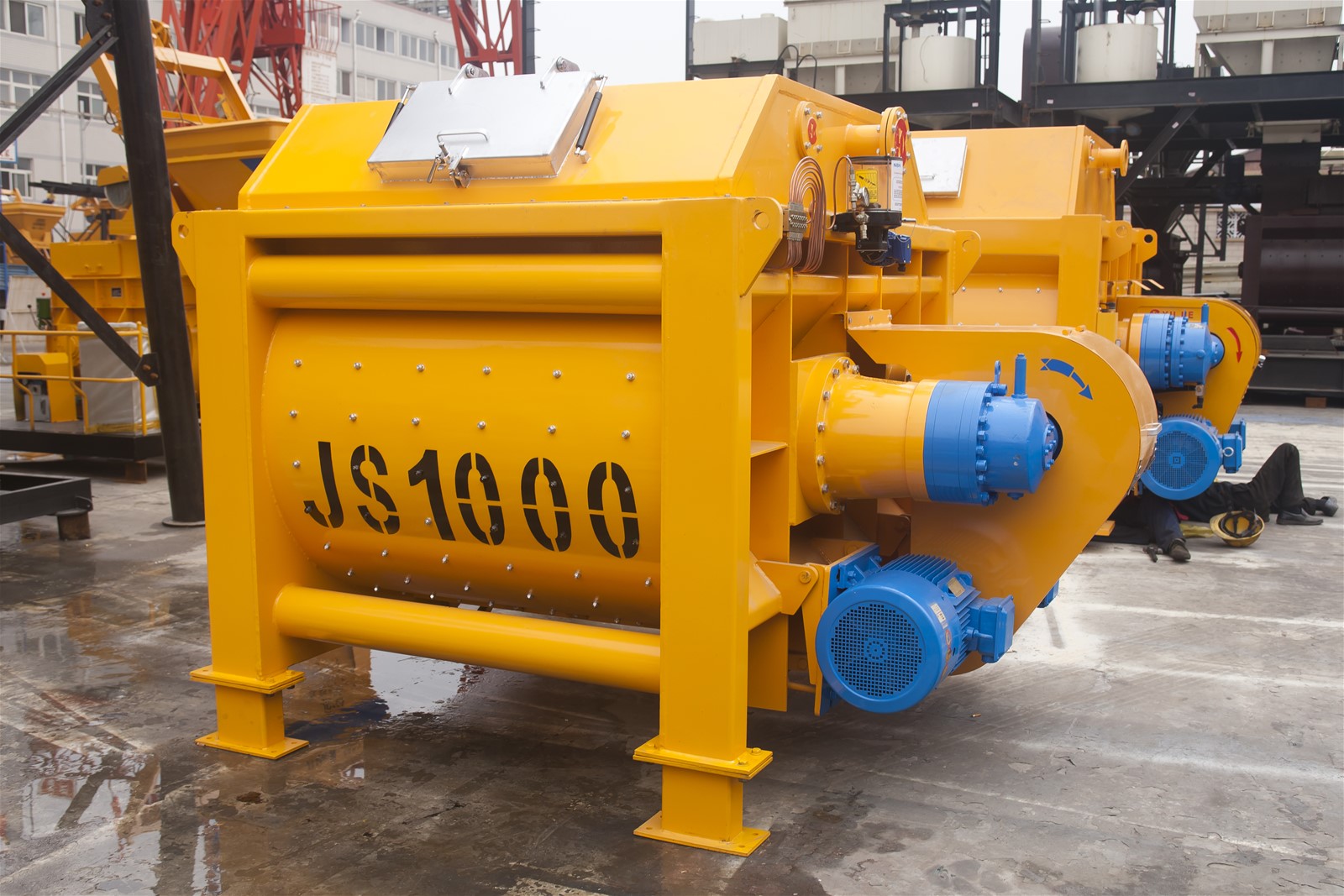

Market Popular JS1000 Concrete Mixer Price with Responsible Service
1.Brief Introduction:
JS concrete mixer is also called engineering concrete mixer. JS concrete mixer can be grouped into single shaft concrete mixer and twin shaft concrete mixer. JS concrete mixer belongs to forced type concrete mixer.
JS concrete mixer, Twin shaft Concrete Mixer is the second generation of the compulsory horizontal type concrete mixer. It is excellent in energy efficiency and time saving. the technology of separating the shaft bearings from the shaft sealing makes the sealing is easily accessible for maintenance. Moreover, except for hydraulic control system for discharge electrically or manually, it adds pneumatic device. the machine is a classic twin shaft concrete mixer meeting the requirements of medium to high concrete output. Thanks to its design, JS concrete mixer is extremely reliable and reflects the state of the art. What`s more, it is high quality with competitive price.
2.Techincal parameters: Model JS500 JS750 JS1000 JS1500 JS2000 JS3000 Capacity 30m3/h 35m3/h 50m3/h 75-90m3/h 80-100m3/h 120-160m3/h Discharge Volume 500L 750L 1000L 1500L 2000L 3000L Charge Volume 800L 1200L 1600L 2400L 3000L 4800L Loading type of aggregates Hopper Hopper both both Belt conveyor Belt conveyor Mixing blade speed 30r/min 29.3r/min 25r/min 25r/min 21r/min 21r/min Number of mixing blade 7 x 2 7 x 2 7x 2 7 x 2 7 x 2 7 x 2 Mixer motor power 18.5kw 30kw 37kw 2*30kw 2*37kw 2*55kw Hoist Electromotor Power 5.5kw 7.5kw 11kw 11kw 21kw 27kw Water Pump Power 0.75kw 1.1kw 2.2kw 2.2kw 3kw 3kw Lifting speed of hopper 35m/min 39.5m/min 36m/min 36m/min 24.58m/min 24.58m/min Overall weight 4070kg 5700kg 7800kg 9500kg 10000kg 11500kg Overall dimension(mm) 2900X2150X2580 3400*2280*2650 3660*2260*2800 3360*2260*2800 3500*2400*2150 4050*2680*2150
3.Performance features:
JS series concrete mixer is with characteristics of reasonable structure, high mixing ability, high mixing quality, low consumption, novel layout, high weighing accuracy and easy operation.
Easy for installation, simple and convenient
Easy operation, high mixing efficiency, less residual volume, easy cleaning, it is one kind of ideal concrete mixing equipment
Reducer is from international famous components which greatly reduced the failure rate, and advance the Utilization rate.
