| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 15 Months |
| Certification: | ISO, CE, SGS, BV |
| Weight: | 4100kg |
| Dimension(L*W*H): | 9000x2100x2960mmm |
| Power(W): | 12000 |
| Model Number: | PLD1200-3 |
| Brand Name: | YUJIE |
| Place of Origin: | China (Mainland) |
| Power Type: | Electric |
| Condition: | New |
| Productivity: | 60m3/h |
| Weighing hopper: | 1.2m3 |
| Storage hopper: | 3m3 |
| Weighing accuracy: | 2% |
| Feeding height: | 2600mm |
| Weighing value: | 2000kg |
| Feeding belt speed: | 1.2m/s |
| Structure: | Compact |
| Performance: | Reliable |
| Color: | Customer request |
Quick Details
Specifications

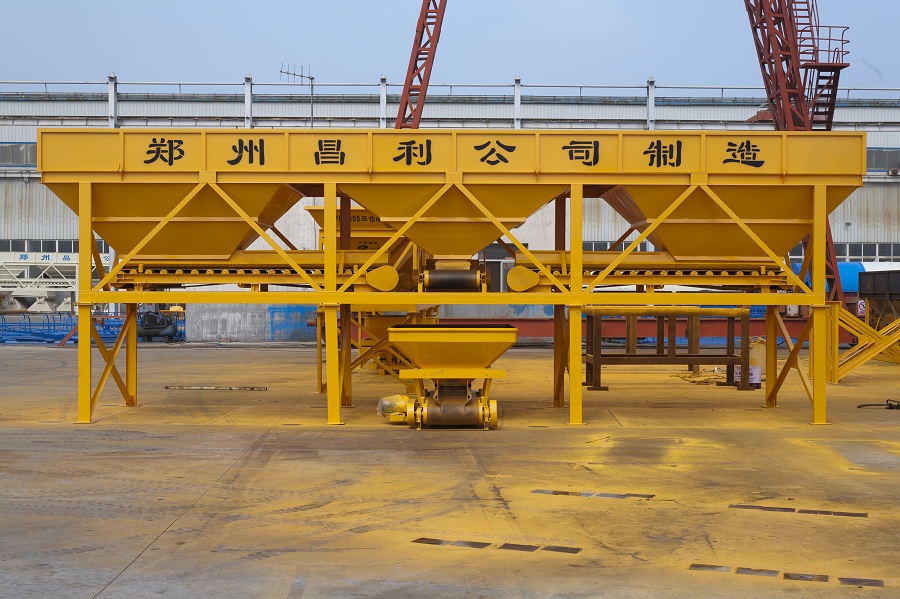

High Precision Concrete Batching Machine with Advanced Technology
PLD concentrated weighing batching machine has PLD800, PLD1200, PLD1600, etc models which are common batching machines used in mini concrete mixing plant.
PLD concentrated weighing batching machine is composed of storage hopper, weighing hopper, discharge belt, support, etc. All storage hoppers use one weighing hopper, aggregate is conveyed to weighing hopper by discharge hopper and discharge speed can be adjusted by discharge belt's revolving speed.
PLD concentrated weighing batching machine is with simple structure, high weighing accuracy and widely use. Except concrete mixing plant, it can also applied in brick making machine and other equipment.
Parameters
Model |
PLD800 |
PLD1200-2 |
PLD1200-3 |
PLD1600-3 |
PLD1600-4 |
Capacity of Weight Hopper |
0.8 m3 |
1.2 m3 |
1.2 m3 |
1.6 m3 |
1.6 m3 |
Capacity of Storage Hopper |
2 m3 x 2 |
3 m3 x2 |
3 m3 x3 |
4.5m3 x3 |
4.5m3 x4 |
Productivity |
48 m3/h |
60 m3/h |
60 m3/h |
80 m3/h |
80 m3/h |
Mixing Accuracy |
2% |
2% |
2% |
2% |
2% |
Max Weighing Value |
1500 Kg |
2000 Kg |
2000 Kg |
2600 Kg |
2600 Kg |
Number of Batching |
2 |
2 |
3 |
3 |
4 |
Feeding Height |
2430 mm |
2600 mm |
2600 mm |
2800 mm |
2800 mm |
Feeding Belt Speed |
1.25 m/s |
1.25 m/s |
1.25 m/s |
1.25 m/s |
1.25 m/s |
Power |
3 x3 Kw |
3 x 3 Kw |
4 x 3 Kw |
4 x 3 Kw |
5 x 3 Kw |
Complete Weight |
2300 Kg |
2800 Kg |
4100 Kg |
4400 Kg |
5280 Kg |
Overall Dimension |
5900x1800x 2830mm |
6300x2000x3050mm |
9000x2100x2960mmm |
9300x2100x3060 mm |
12000x2100x3060 m |
Model |
PLD1600-3 |
PLD1600-4 |
PLD2400-3 |
PLD2400-4 |
PLD3200-4 |
PLD4800-4 |
Number of Weighing Hopper |
3 |
4 |
3 |
4 |
4 |
4 |
Capacity of Storage Hopper |
6 m3 x 3 |
6 m3 x 4 |
10.5 m3 x 3 |
10.5 m3 x 4 |
16.6 m3 x3 |
22.5 m3 x3 |
Productivity |
80 m3/h |
80 m3/h |
120 m3/h |
120 m3/h |
160 m3/h |
220 m3/h |
Mixing Accuracy |
2% |
2% |
2% |
2% |
±2% |
±2% |
Number of Batching Types |
3 |
4 |
3 |
4 |
4 |
4 |
Feeding Height |
2800 mm |
2800 mm |
3320 mm |
3320 mm |
3380 mm |
3380 mm |
Power |
12 Kw |
15 Kw |
11 Kw |
15 Kw |
15 Kw |
18.5 Kw |
Complete Weight |
6700 Kg |
7800 Kg |
9500 Kg |
10.8 Kg |
14400 Kg |
16000 Kg |
Overall Dimension |
10000 x 2100 x 3300 |
13200 x 2100 x 3300 |
10200 x2300 x 3800 mm |
13520 x 2300 x 3800 |
14400 x 2400 x 4300 |
15000 x2500 x 4500 mm |
