CSK Series

Product Description

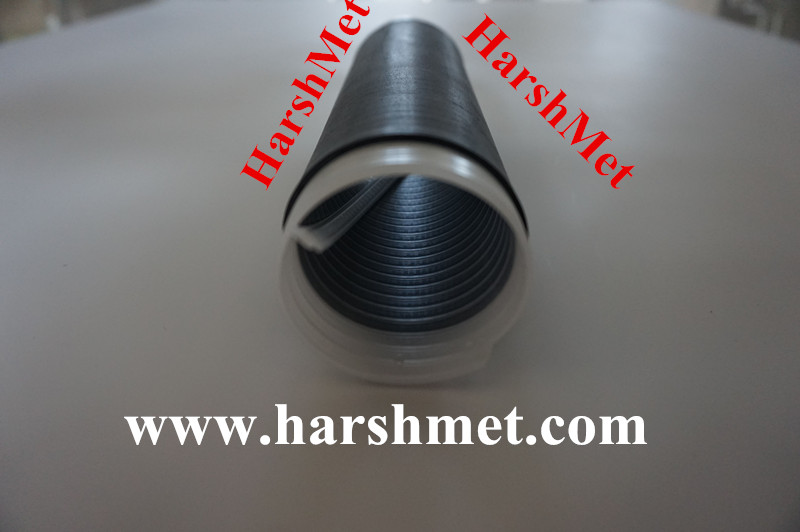

Cold Shrink Sealing Kits CSK Series offer a safe, easy way to Reliably seal connections on coaxial cables. CSK cold shrink is ideal for wireless communications towers and other exposed coaxial Interfaces. Each CSK kit includes a cold shrink EPDM rubber sleeve Which is factory-expanded and placed on a removable plastic core. Simply Prepare the connection, position the tube and unwind the pre-scored Core. The natural tendency of the rubber sleeve to return to its Original diameter provides constant radial pressure, forming a reliable, Water-resistant seal.

Features/Benefits

1. Reliable seal against water.
2. Tough, resilient rubber holds pressure seal, even after exposure.
3. Broad application range;
4. Eliminates need for heat source or special tools.
5. Easily removed for inspections or disconnects.
6. Resistant to ultraviolet, fungus, ozone, alkalis and acids.
7. Constant radial pressure helps connectors stay together in wind and vibration.
8. Meets IP68, IP67(Equivalent to ANSI C119.1)

Applications

1. Cold Shrink Sealing Kits CSK Series can be used for sealing of coax cables with Type N or 7/16 DIN connectors.
2. Installation features make it the preferred coax connection seal:
3. Simple installation requires only installer's hands.
4. Excellent thermal stability, weathering properties, abrasion resistance.

Specifications

CSK Cold Shrink Coax Sealing Kits contain EPDM rubber sleeves that Are applied without heat or flame. Where cable-to-connector diameter Ratios dictate the need, foam strips serve as a dimensional spacer between smaller coax cables and the minimum sealing diameter of the cold Shrink tubing. the cold shrink tubing assembly serves as an outer seal Which seals on the O. D. of the foam strip or coax cable.  It is Compatible with the coax cables and N or 7/16 DIN connectors.
