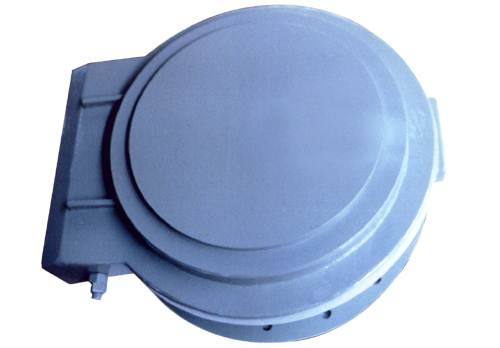

Pressure vacuum release valve

Uses and characteristics

      Pressure vacuum release valve is installed in the top of the dry ash library, it can operate continuously. When the back pressure or negative pressure is too high, it can adjust the working pressure of the dry ash warehouse to normal range, so that the ash warehouse can avoid bearing high positive and negative pressure, to ensure the safety of the ash warehouse. the advantages of the valve is: reliable operation, tight seal, long service life, it is the key equipment of the ash warehouse system.


the main technical parameters:

Model: SFF508

Diameter: Ф508

Standard permeability: Pressure: 7.69 x 10-3 kgf / cm2

Vacuum: 2.2 x 10-3 kgf / cm2

Maximum permeability: pressure: 26.36 × 10-3 kgf / cm2

Vacuum: 8.8 x 10-3 kgf / cm2

Weight: 125kg
