the following example is for you reference.
1.Brief Introduction:
2.Techincal parameters:
Iterm Unit HS-YF-500 HS-YF-1100 HS-YF-1500 Chamber Diameter mm Φ500 Φ1100 Φ1500 Height mm 1000 1800 2300 Volume M3 0.2 1.4 3.8 steam inlet mm Φ25 Φ50 Φ50 Consumption Kg/cycle 3-5 6-9 12-18 Pressure mpa 0.6-0.8 0.6-0.8 0.6-0.8 Compressed air inlet mm Φ20 Φ40 Φ40 Consumption M3/cycle 0.5-0.9 1.0-1.2 1.2-1.5 Pressure mpa 0.6-0.8 0.6-0.8 0.6-0.8 Drain pipe Blower outlet g/l Φ65 Φ80 Φ100 the total emission g/l Φ65 Φ80 Φ150 Electric power Installing power kw 9.5 16.3 38 Consumption Kg/cycle 0.2 0.3 0.65 Density g/l 12-30 12-30 12-30 Productivity 12g/l Kg/h 70-90 220-250 500-600 18g/l Kg/h 110-120 300-320 800-900 20g/l Kg/h 160-180 380-400 1000-1200 30g/l Kg/h 200-220 480-500 1400-1500 (L*W*H)Overall size mm 3100*1500*3500 3700*1500*3500 3700*3000*5300 Weight kg 1500 3500 4800 Room height required mm 5000 6000 6000
3.Performance features:
●Including common dryer bed, screw conveyer, filling, sieving devices, etc
●Steam system: Steam pressure reducer and angle valve to control steam;
●Filling system: Adopts electronic weighing system, setting filling weight on touch screen for the material filling automatically;
●Material level control: Adopts photo sensor to control the expansion level;
●Electric control: Adopts PLC programmable controller and touch screen, keep all process work automatically
●Efficient screw conveyor and electronic weighting device to make higher production efficient and less labor intensity
●with enclosed construction, the chamber will make high efficient and save more steam and use 50% energy less than continuous pre-expander.

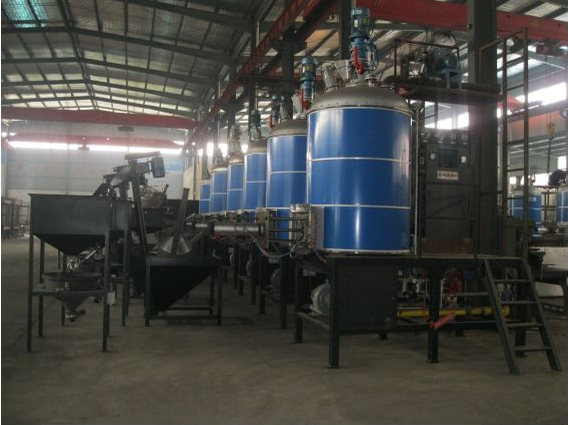

●the machine is equipped with fluidized bed dryer, including drying, automatic sieving, depluming and material conveying to silos.
●most components used I the machine are of famous brand both at home and abroad.
