| Tensile Strength: | 1.9Mpa |
|---|---|
| Rated Voltage: | 35KV/mm |
| Application: | High Voltage |
| Material: | EPR Rubber |
| Type: | Insulation Tape |
| Model Number: | SFT series |
| Brand Name: | HarshMet |
| Place of Origin: | China (Mainland) |
| Material: | EPR Rubber |
| Thickness: | 0.76mm |
| Width: | 38.1mm |
| Length: | 4.57m |
| Color: | Black |
| Elongation: | 800% |
Quick Details
Specifications

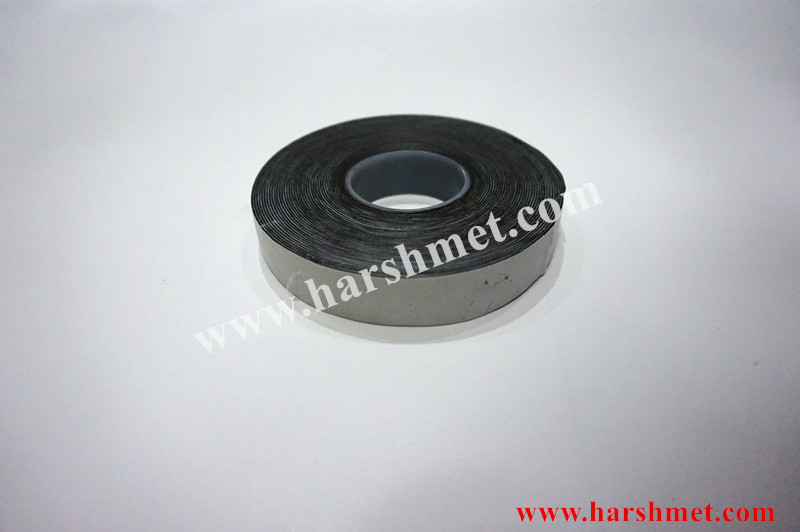

HarshMetSFT series self amalgamating EPR tape is designed to provide a long-term environmental seal for main feeder, jumper and antenna connections. Once installed, the self amalgamating tape provides a water tight seal around the connection eliminating the need for traditional butyl tape and mastic.SFT seriesFinds wide applications in telecommunications and electrical industry and provides high reliability and work highly stable in harsh environment.
Sizes
38.1mm×4.57m×0.76mm
38.1mm×4.57m×0.99mm
Applications
Self Amalgamating Tape
Part No. |
Description |
Kit Qty. |
SFT-35/10/5 |
Self Amalgamating Tape |
Individual Roll |
38.1mm × 0.76mm× 4.57m | ||
|
| |
WS-SFCK |
Self Amalgamating Connector Kit |
Kit of 2 Rolls |
38.1mm × 0.76mm× 4.57m | ||
|
| |
SFT-35T/10T/5T |
Self Amalgamating Connector Kit |
Individual Roll |
38.1mm × 0.99mm × 4.57m | ||
|
|
Number of Connections Accommodated
Size |
Per Roll |
Per Kit |
1/2" to 1/2" |
3 |
6 |
1/2" to 7/8" |
2 |
4 |
1/2" to 1-1/4" |
1 |
2 |
1/2" to 1-5/8" |
1 |
2 |
Technical Data
Properties |
Typical Value |
Test Method |
Thickness |
0.76mm/0.99mm |
ASTM D 4325 |
Fusion |
Pass |
ASTM D4388 |
Ozone Resistance |
Pass |
ASTM D 4388 |
|
|
|
UV Resistance |
Pass |
ASTM D 4388 |
Water Absorption |
0.05%(24Hrs) |
ASTM D 570:63 |
Corrosion Liability |
None |
BS3924:78 |
|
|
|
Temperature range -40℃ to 100℃ continuous, up to 130℃ for limited period during overload conditions.
Selection Guide
Models |
Thickness (mm) |
Tensile Strength (MPa) |
Elongation (%) |
Dielectric Strength (KV/mm) |
SFT-35 |
0.76 |
1.85 |
800 |
35 |
SFT-35T |
0.99 |
1.85 |
800 |
35 |
SFT-10 |
0.76 |
1.74 |
600 |
11 |
SFT-10T |
0.99 |
1.74 |
600 |
11 |
SFT-5 |
0.76 |
1.6 |
600 |
5 |
SFT-5T |
0.99 |
1.6 |
600 |
5 |
