| Coil Number: | Autotransformer |
|---|---|
| Coil Structure: | Toroidal |
| Phase: | Single |
| Usage: | Current |
| Model Number: | LZFW2-24W3 |
| Brand Name: | GFUVE |
| Place of Origin: | China (Mainland) |
| Class: | 0.2S/0.5S/0.2/0.5/10P10 |
| Color: | Grey |
| Rated frequency: | 50Hz or 60Hz |
| Rated secondary current: | 5A or 1A |
| Rated insulation level: | 12/42/75KV |
| Material: | Epoxy resin |
| Weight (kg): | 43 |
| Standards: | IEC60044; IEC 61869; ANSI/IEEE C57.13 |
| Rated primary current: | 5-800A |
| Rated dynamic current: | 150kA |
Quick Details
Specifications
Introduction
the supporting-type current instrument transformers LZFW2-24W3 are fully enclosed and cast in epoxy resin. Transformer is equipped with one core and coil assembly rated for measurement and protection. the transformers are designed for electric power systems of 50Hz/60Hz rated frequency and 20kV rated voltage. They are used for outdoor mounting. The performances of the products meet standards IEC60044-1, IEC61869-2 and IEEE C57.13. The products are applied to metering electric energy, voltage controlling and relay protection.
Product Description
MV Instrument Transformers

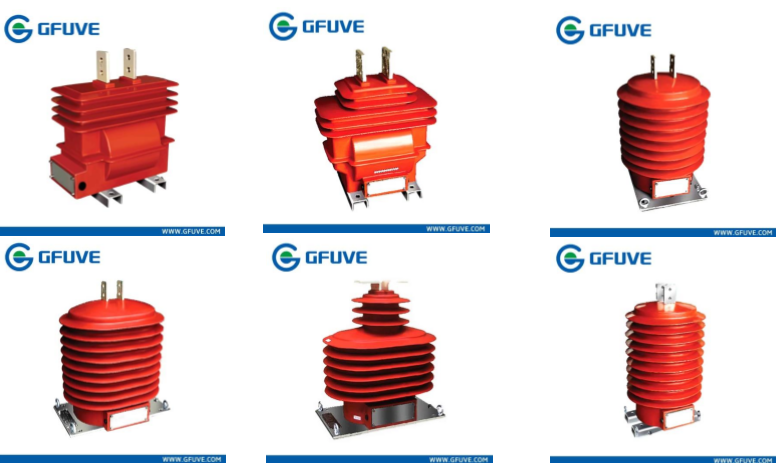

Outdoor Current Transformer
for measuring or/and protection
IEC 61869-2, Instrument transformers-Part 1: Current Transformers
Support type
PARAMETERS

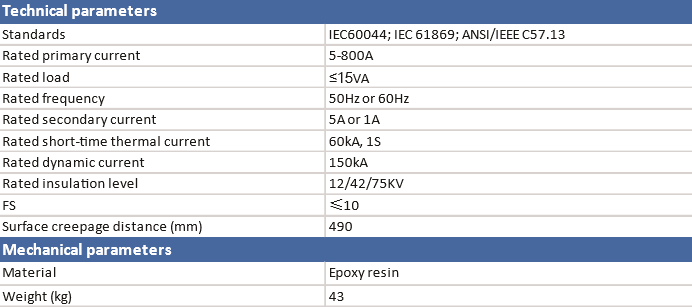

TECHNICAL PARAMETERS

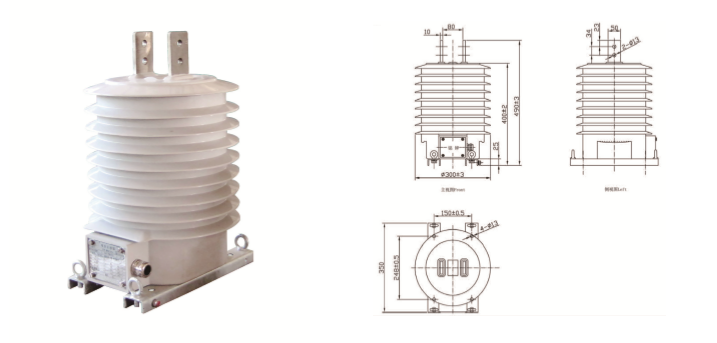

Outline drawing
