| Application: | Laser Engraving |
|---|
Quick Details
Specifications

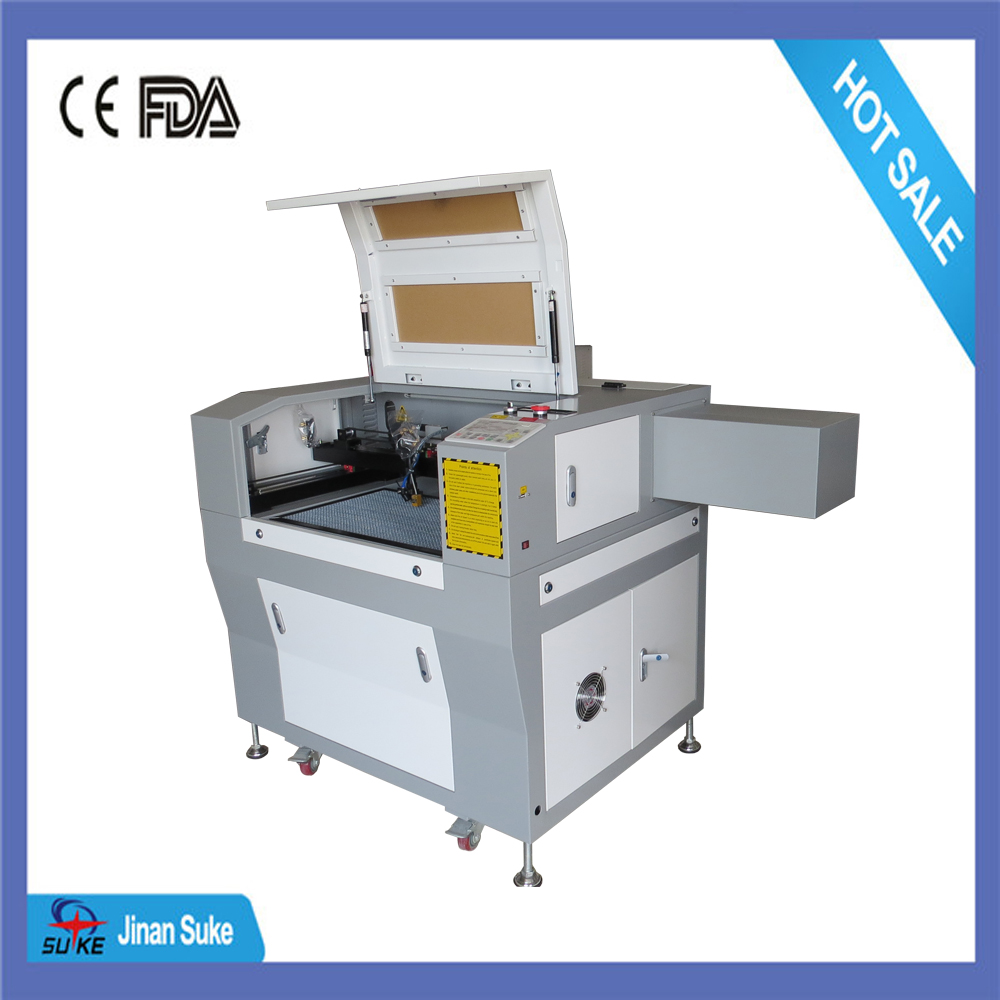

50w co2 laser engraving and cutting machine 6040
©Applicable materials
Non-metal materials such as double color board, Plexiglas, glass, bamboo and wood, rubber, marble, granite
and tiles, leather
Technical parameters:
Description |
Parameter |
Working area |
600mm×400mm |
Table area |
550*350mm |
Working life of tube |
1200-1500 hours |
Laser tube power |
60W |
Laser type |
Herietic and detached co2 laser tube |
Max engraving speed |
60000mm/min |
Max cutting speed |
30000mm/min |
Resetting positioning accuracy |
±0.01mm |
up and down platform |
Max 18cm |
Max power |
Less than 1kw |
Power supply |
AC 110 - 220V, 50 - 60Hz |
Min. Shaping character |
Chinese 1.5mm×1.5mm English 1mm×1mm |
Supported format |
*plt,*sdt,*dxf,*bmp,*dwg,*al,*las |
Supported graphic |
BMP, HPGL, PLT, DST, DXP, and AI |
Machine control |
DSP controlling |
Driving system |
Stepper |
Assistant equipment |
Exhaust-fans, water pump,air pump. |
Software supported |
CorelDraw, AutoCAD, Photo shop |
Working temperature |
0--45 |
Working humidity |
5%---95% |
