| Application: | Laser Marking |
|---|
Quick Details
Specifications

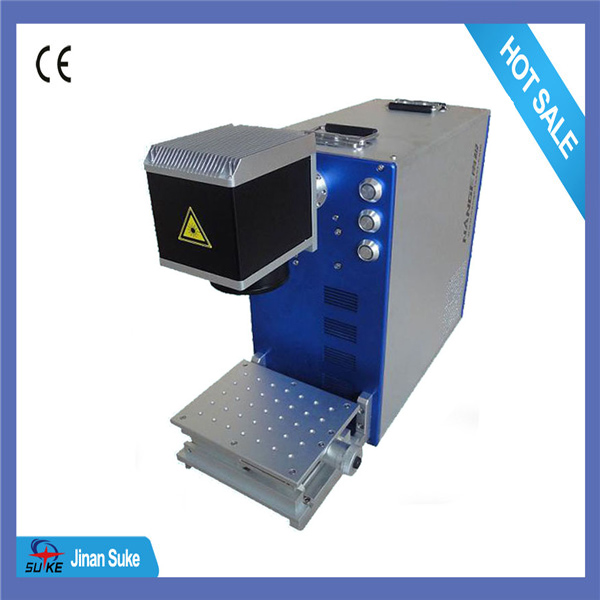

Fiber laser marking machine fiber metal marker
Technical parameter:
Type specification |
SK-FP10 |
SK-FP20 |
SK-FP30 |
SK-FP50 |
Wave length of laser |
1064nm | |||
Laser repetition frequency |
20kHz~100kHz | |||
Laser power |
10W |
20W |
30W |
50W |
Marking scope |
70*70 /100*100 /200*200mm/300*300mm | |||
Laser sources |
Fiber module | |||
Laser Head |
Scanning head | |||
the minimum focus facula diameter |
20μm | |||
Minimal character |
0.01mm | |||
Marking speed |
≤7000mm/s | |||
Repeated accuracy |
0.0025mm | |||
Cooling ways |
Force-air Cooling | |||
Power supply |
220V/ 50Hz/2kVA | |||
Gross weight |
65KG |
65KG |
65KG |
65KS |
Volume |
1m3 |
1m3 |
1m3 |
1m3 |
Process Material |
All kinds of metal and part of Non-metal Materials | |||
Support format |
PLT, BMP, DXF, JPG, TIF, AI etc | |||
Package |
Standard Crate for export | |||
the whole machine include |
LCD display, controller box ,laser systems, | |||
Configuration |
Coaxial red light position system up & down worktable | |||
Accessory box |
Microsoft dog, quality certificate e | |||
Configuration:
Name |
Remarks |
Optical laser |
Long service life, high reliability, fine beam quality |
Galvo mirror(Laser head) |
Fine marking, more quick and high reliability |
F-θ lens |
High quality optical device(you can choose 110*110mm 200*200mm 300*300mm) |
Marking software |
Powerful, simple and convenient operation, Auto-cad, Coreldraw, Photoshop software compatible format |
Control computer |
Industrial Computer |
Control cabinet |
Optical fiber special cabinet, all the mold production, high seal |
