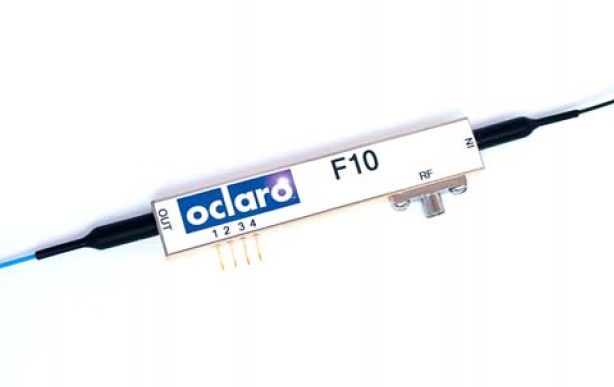

10Gbps Intensity Modulator with the Features of

1.Very Low Drive Voltage, RF VπVoltage, Typ.

2.C and L-Band Operation

3.Enhanced E/O Bandwidth for up to 12.5 GB/s Modulation Speed

4.Low Insertion Loss, 3.5dB Typ.

5.High Extinction Ratio, 30dB Typ.

6.Integrated Monitor Photodiode

7.Available with Fixed Chirp or Zero Chirp


Description

Oclaro intensity Modulators are based on the Mach-Zehnder Interferometer architecture. They are Manufactured using the highly reliable Titanium indiffusion technology in X-cut, ypropagating Lithium Niobate substrates. this 10 GB/s - 12.5 GB/s Modulator is designed for high bit rate advanced Metro to Long Haul communication Systems that requires the superior performance of x-cut Lithium Niobate. Exceptionally Low drive voltage enables low power consumption reducing the overall transmitter Cost.

A small footprint and low profile makes the modulator compatible with the 10 GB/s MSA Transponder Standard. A single Tx board design can accommodate either the zero-chirp or the Fixed chirp modulator version. Suitable driver amplifiers are available through Oclaro recommended partners.
