| Model Number: | OA3MHQM |
|---|---|
| Brand Name: | Centellax |
| Place of Origin: | United States |
Quick Details
Specifications
Product Specifications/Features

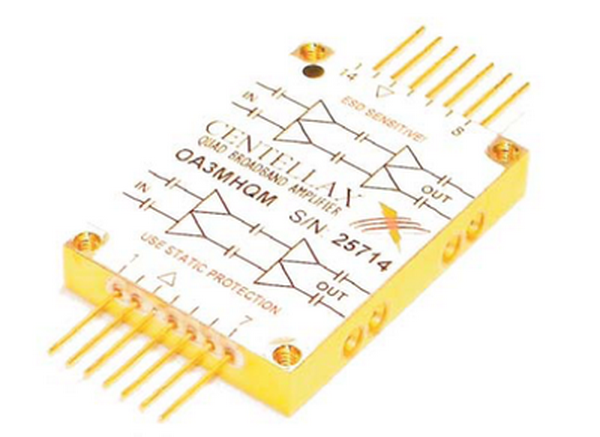

- 100Gbps Lithium Niobate Modulator Driver, Centellax OA3MHQM, 8V 28Gbps Broadband Amplifier, Quad Input
the OA3MHQM is a small, four channel, high performance, broadband 28Gb/s Lithium Niobate optical modulator driver with low jitter, 8V amplitude and excellent gain and group delay flatness. It is designed for 40 to 100 Gb/s Ethernet DP-QPSK and DQPSK SONET optical modulator driver applications. It is ideally suited for integration into small form-factor (SFF) transponders.
Product Highlights
Quad 8V Outputs
0.8ps added RMS jitter, 8ps rise / fall time
25dB gain to > 30GHz
<10W power dissipation
Ultra-small package, hermetically sealed, GR357 compliant
Application
the OA3MHQM is offered in a small modularized package with excellent performance, intended for transponder integration. the OA3MHQM has gain and power ideally suited for driving either 40G electro-absorption modulators or 100G Lithium Niobate modulators, for example, Fujitsu FTM7977HQA; OCLARO 792000870/1050/1160; JDSU 100G-QPMZ-SFF. It can be used for differential modulators or with other complex modulation schemes. It has low power dissipation, ample drive level, low added jitter, fast rise/fall times, and is easy to use with simple bias voltages.
