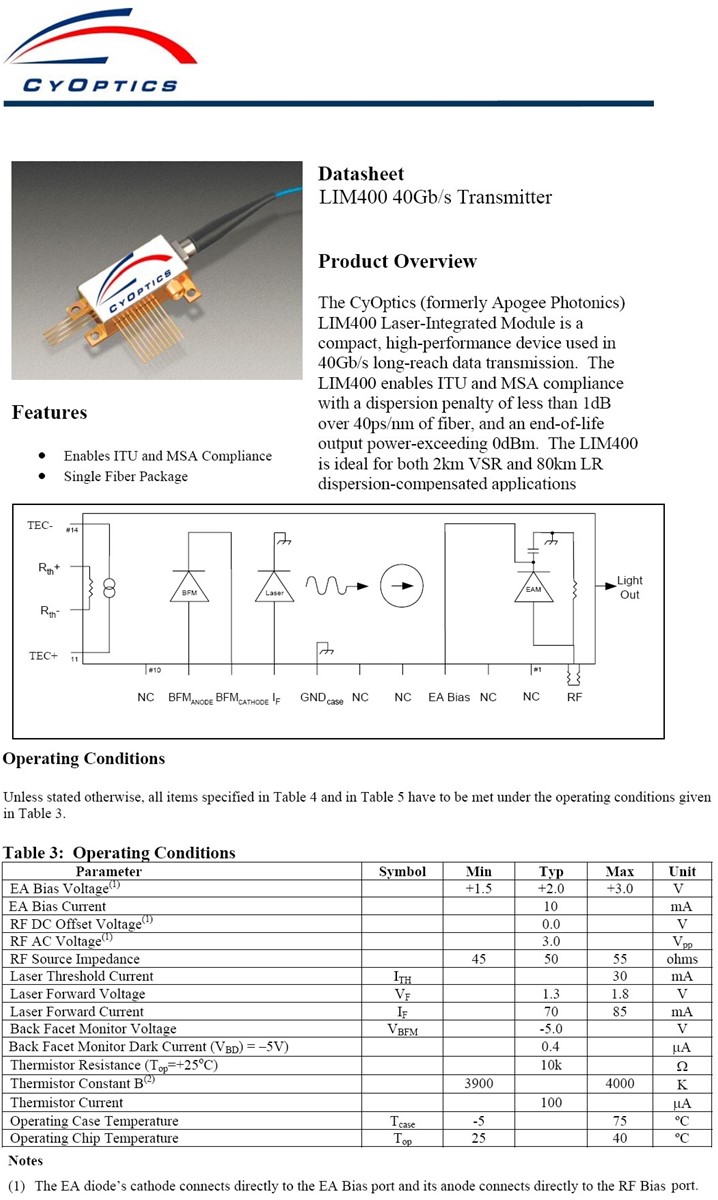

40Gbps Transmitter, Cyoptics LIM400, Electro-absorption Modulated Laser, Integrated EML Module

the CyOptics (formerly Apogee Photonics, now Broadcom Limited) LIM400 Laser-Integrated Module is a compact, high-performance device used in 40Gb/s long-reach data transmission. the LIM400 enables ITU and MSA compliance with a dispersion penalty of less than 1dB over 40ps/nm of fiber, and an end-of-life output power-exceeding 0dBm. the LIM400 is ideal for both 2km VSR and 80km LR dispersion-compensated applications CyOptics' innovation has LED to the reduction of size and power requirements, enabling MSA-compliant transponders and increased board densities. the LIM400 integrates both laser and modulator into a single package, thereby eliminating a separate TEC. A proprietary internal-biasing technology permits direct connection to the RF port of the EAM, eliminating the need for an external bias-tee. Lastly, the low-profile corner-mount design of the LIM400 allows additional board space savings.

Features

40Gb Electro-absorption Modulator (EAM) with Integrated Laser
Integrated bias eliminates need for external bias-tee; Separate DC bias for chirp control
40ps/nm with < 2dB Dispersion Penalty (w/o FEC)
Unique low-profile corner mount design; GPPO-connector input
Enables ITU and MSA Compliance, Full Telcordia GR-468-CORE qualification
Applications

SONET OC-768 telecommunications
40Gb/s Optical Transmitter
