| Model Number: | Bprv2123 |
|---|---|
| Brand Name: | U2T |
| Place of Origin: | Germany |
Quick Details
Specifications
Product Specifications/Features

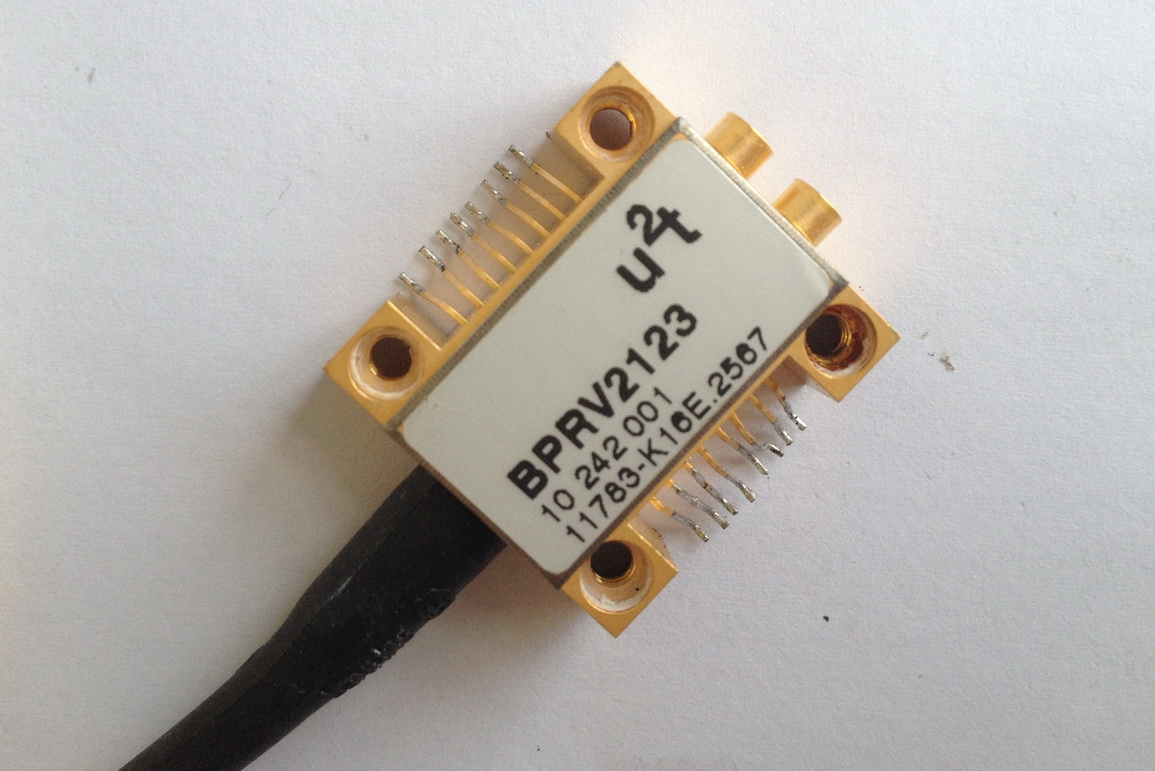

- 40Gbps DPSK Balanced Photo-receiver, U2T (Finisar) BPRV2123, Fiber Coupled, Differential DC coupled Output.
the Balanced photo-receiver module BPRV2123 is a differential front-end for 43Gbits/s DPSK-applications featuring high differential gain. the photo-receiver module contains two waveguide-integrated PIN photodiode (PD) and a single chip and limiting amplifier (LA) within one small form factor SMD-package. the Receiver is therefore well suited for 768/STM-256 system operation up to 43Gbits/s.
the DC output voltage can be monitored for OUTN and OUTP independently. for each amplifier path a threshold control at a linear amplification stage should be applied to ensure an optimized differential output signal.
An excellent electrical and optical phase propagation is achieved by a total skew of lower than 2ps between the balanced signal paths.
FEATURES
Hermetically sealed SMD package with two GPPO connectors
Balanced PIN / LA photo-receiver module
500mV differential output swing and very low skew.
Wavelength range: 1530nm~1620nm
Dual optical input, differential RF output with voltage swing of Max.700mW
Typical 22GHz 3dB cut-off frequency
Differential conversion gain 2400V/W @ 1550nm
Sensitivity -8dBm@1550 nm
Differential DC coupled output with threshold control option
APPLICATIONS
43 GB/s DPSK communication systems
Transponder and line card designs
Radio over fiber
