| Model Number: | Xpdv2120ra |
|---|---|
| Brand Name: | U2T Finisar |
| Place of Origin: | Germany |
Quick Details
Specifications
Product Specifications/Features

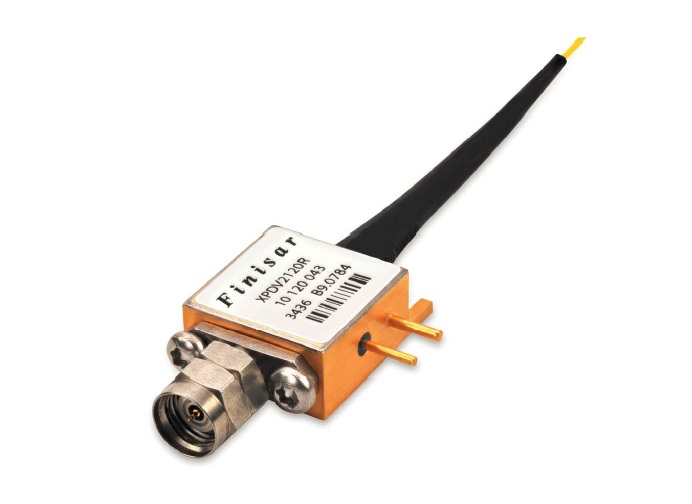

- 40Gbps PIN Detector, U2T (Finisar) XPDV2120RA, Fiber Coupled Photo-receiver
the XPDV2120RA photo-detector consists of a well-established, waveguide integrated single photodiode chip. Designed to exhibit an optimized frequency response in both, power and phase. Due to experienced RF packaging, the pulse response shows almost no ringing, and single power supply make it extremely easy to use.
SPECIFICATIONS of the XPDV2120RA,
Photodiode DC Responsivity @ 1550 nm, 0.65A/W Tpy
Polarization Dependent Loss: 0.3dB Typ
Optical Return Loss: Min.27dB
3dB cut-off Frequency: 40GHz Typ (AC coupled output)
Photodiode Dark Current: 5nA, Typ
Pulse Width(Time Response): 10ps
Wavelength Range: 1480~1620nm
Average Optical Input Power Range: 10dBm
Photodiode Reverse Voltage: 2.8V
KEY FEATURES
High bandwidth combined with flat response
Excellent pulse behavior
Unsurpassed High-Power handling
High responsivity
Unique on-chip integrated bias network
Well matched to 50 Ohms
APPLICATIONS
Communication systems at 40 GB/s (OC-768) and beyond
Microwave photonics up to 60 GHz
High-speed Light-wave characterization
