Product Main

Quick Details

Model Number:	Bprv2125A
Brand Name:	U2T (Finisar)
Place of Origin:	Germany

Specifications

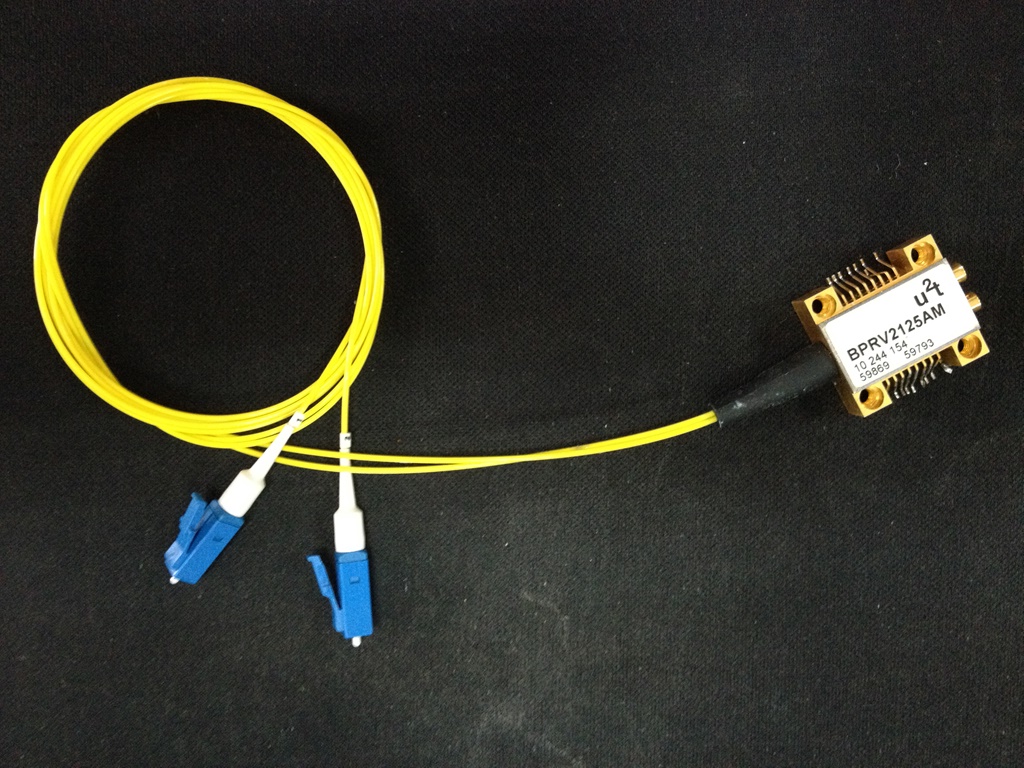

40Gbps DPSK Balanced Photo-receiver, U2T (Finisar) BPRV2125/ BPRV2125A, Fiber Coupled, Differential Output
the Balanced photo-receiver module BPRV2125A is a differential front-end for 43Gbits/s DPSK-applications featuring high differential gain. the photo-receiver module contains two waveguide-integrated PIN photodiode (PD) and a single chip and limiting amplifier (LA) within one small form factor SMD-package. the Receiver is therefore well suited for DPSK and DQPSK applications at 40G and 100G with rates between 20G and 56GBaud.
the DC output voltage can be monitored for OUTN and OUTP independently. for each amplifier path a threshold control at a linear amplification stage should be applied to ensure an optimized differential output signal.
An excellent electrical and optical phase propagation is achieved by a total skew of lower than 5ps between the balanced signal paths.

FEATURES
Hermetically sealed SMD package with two GPPO connectors
Balanced PIN / LA photo-receiver module
500mV differential output swing and very low skew.
Wavelength range: 1530nm~1620nm
Dual optical input, differential RF output with voltage swing of Max.600mW
Typical 31GHz 3dB cut-off frequency
Differential conversion gain 2800V/W @ 1550nm
Sensitivity -10dBm@1550 nm
Differential DC (BPRV2125) or AC (BPRV2125A) coupled output with threshold control option

APPLICATIONS
43 GB/s DPSK communication systems
Transponder and line card designs
Radio over fiber
