Quick Details

Model Number: Mprv1331A
Brand Name: U2T (Finisar)
Place of Origin: Germany

Specifications

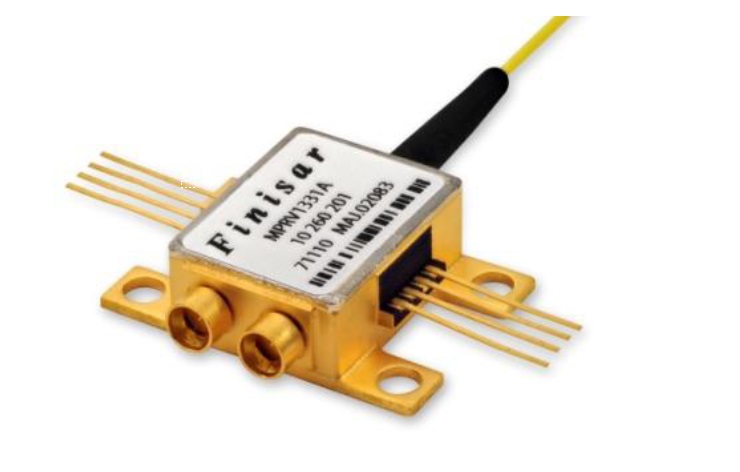

40gbps PINTIA Receiver U2T Finisar Mprv1331A Fiber Coupled Differential Output
Product Specifications/Features
    40Gbps PIN-TIA Receiver, U2T (Finisar) MPRV1331A, Fiber Coupled, Differential Output

    the MPRV1331A is a differential photo-receiver module with very high differential conversion gain and high digital bandwidth of 43Gbps. the photo-receiver module MPRV1331A contains a waveguide-integrated PIN-photodiode (PD) and a trans-impedance amplifier (TIA) with limiting output buffer. An integrated feedback loop optimizes the performance in the frequency and/or time domain with respect to different optical input power.

    PRODUCT FEATURES

    XLMD MSA footprint compliant package
    PIN / TIA photo-receiver module
    Wavelength range: 1300nm~1570nm
    Typical 31GHz cut-off frequency bandwidth
    Conversion gain 2100V/W @ 1550nm, 2100V/W @ 1310nm
    Sensitivity -9dBm@1550 nm; -8dBm@1310nm
    Differential AC coupled output voltage swing is limited to 700 mV
    APPLICATIONS

    43 GB/s communication systems
    Transponder and line card designs
    Radio over fiber
