| Model Number: | AT10gc |
|---|---|
| Brand Name: | Bookham (Oclaro) |
| Place of Origin: | United States |
Quick Details
Specifications
Product Specifications/Features

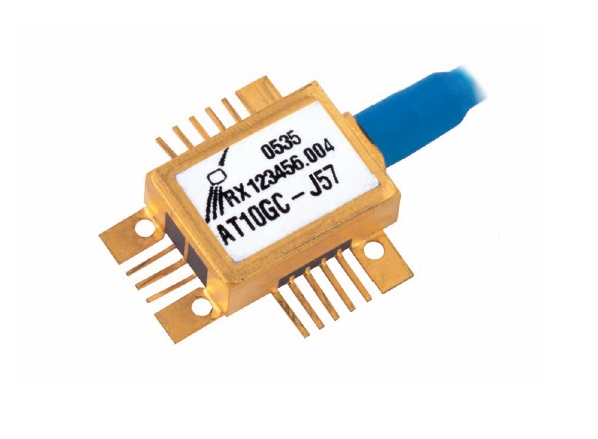

- 10Gbps APD Preamp Receiver, Bookham (Oclaro) AT10GC, Fiber Coupled Photo-Detector
the AT10GC receiver consists of an avalanche photodiode, a low-noise preamplifier and a precision NTC thermistor in a hermetic coplanar package with a connectorized single-mode fiber pigtail. Differential outputs are provided to improve noise rejection for enhanced sensitivity. It has been optimised for use in 10Gb/s metro applications, either as a discrete device or within a transponder, using NRZ modulation, with or without FEC, at data rates up to 10.709Gb/s.
Features:
Sensitivity, -26.5dBm typical; Saturation input power, -1dBm typical;
Low capacitance high speed InGaAs APD photodetector;
Supports FEC rates up to 10.709Gb/s with C and L band;
Maximum differential output voltage, 1000mV peak to peak typical;
Designed to exceed the environmental requirements of Telcordia GR-468-CORE;
Applications:
Client or line side links;
300 pin LR transponder applications;
