| Model Number: | X5 |
|---|---|
| Brand Name: | Jdsu |
| Place of Origin: | United States |
Quick Details
Specifications
Product Specifications/Features

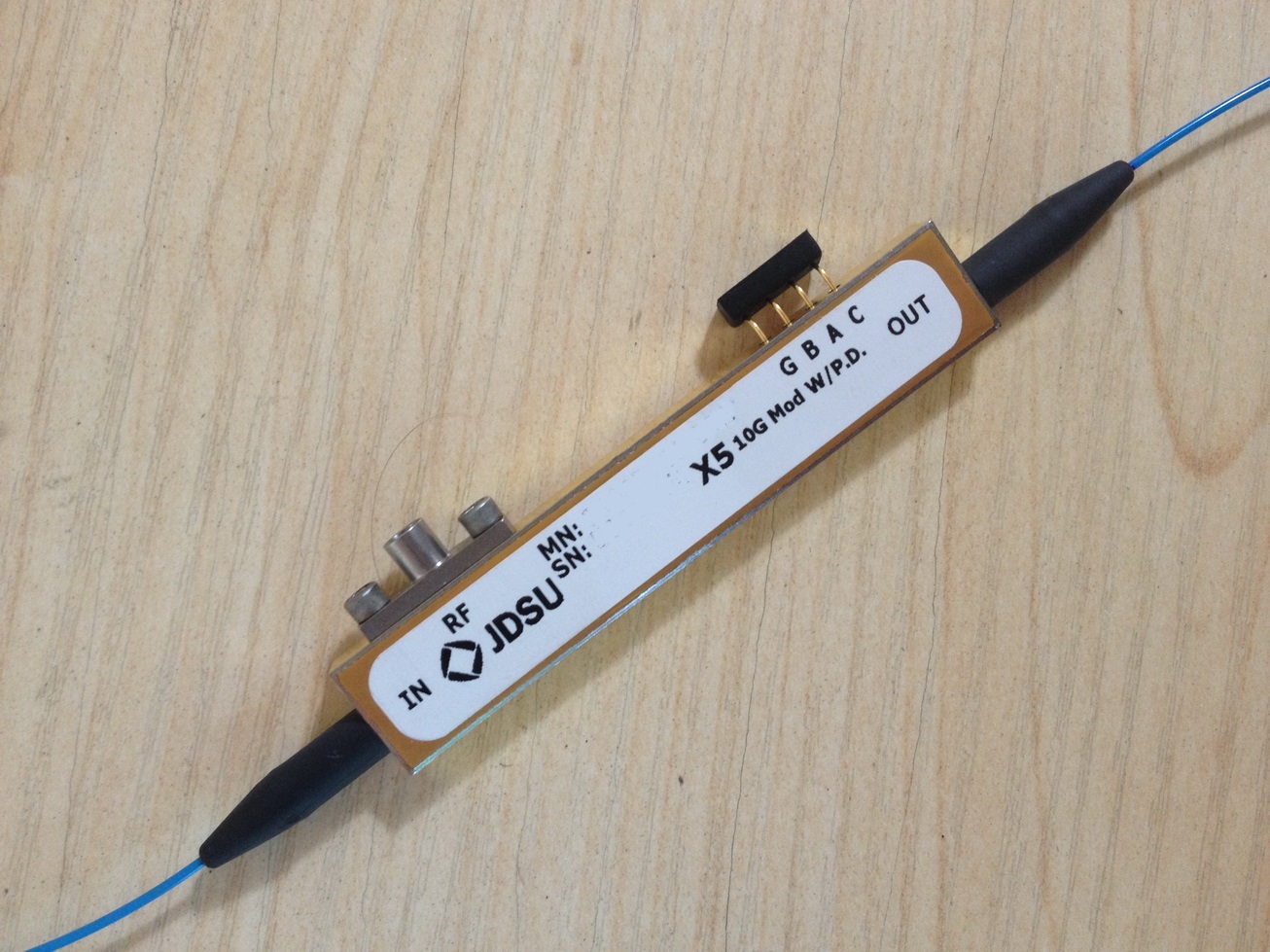

- 0Gbps LN Intensity Modulator, JDSU X5, 50dB/40dB Extra-High Extinction Ratio
JDSU X5 and Z5 single drive 10 GB/s modulators with integrated photodiode are ideally suited for use in long reach (LR)/ very long reach (VR) Metro applications as well as in long haul (LH) transmission. the X5 is a fixed zero-chirp solution, compact packaged.
the X5 modulator operates over the C and L band. Its low drive voltages make them compatible with low power dissipating driver solutions such as GaAs driver technology. In addition to providing bias control feedback, the new enhanced photodiode is capable of power monitoring for control of the transmitter's modulated output power.
Features
10Gbps Intensity Modulator with the Features of
Operation over C-band and L-band, Zero Chirp
Extra-high extinction ratio, 50dB or 40dB, Tpy.
Low drive voltage, RF VπVoltage 5V@2Gps
Small size: 65 x 12 x 5 mm
Surface mountable with gull wing DC pins
GPO RF connector, Integrated photodiode for bias and power control
High bandwidth FEC and super FEC compatible
Power penalty without FEC: < 1 dB (±1200 ps/nm) for X5
Applications
MSA transponders using tunable or fixed wavelength sources
TDM and WDM Metro systems with up to 120 km reach
Long Haul (LH) and Ultra Long Haul (ULH) systems (both terrestrial and submarine)
Alternate modulation schemes including electrical RZ
