| Model Number: | Ftm7980EDA |
|---|---|
| Brand Name: | Fujitsu |
| Place of Origin: | Japan |
Quick Details
Specifications
Product Specifications/Features

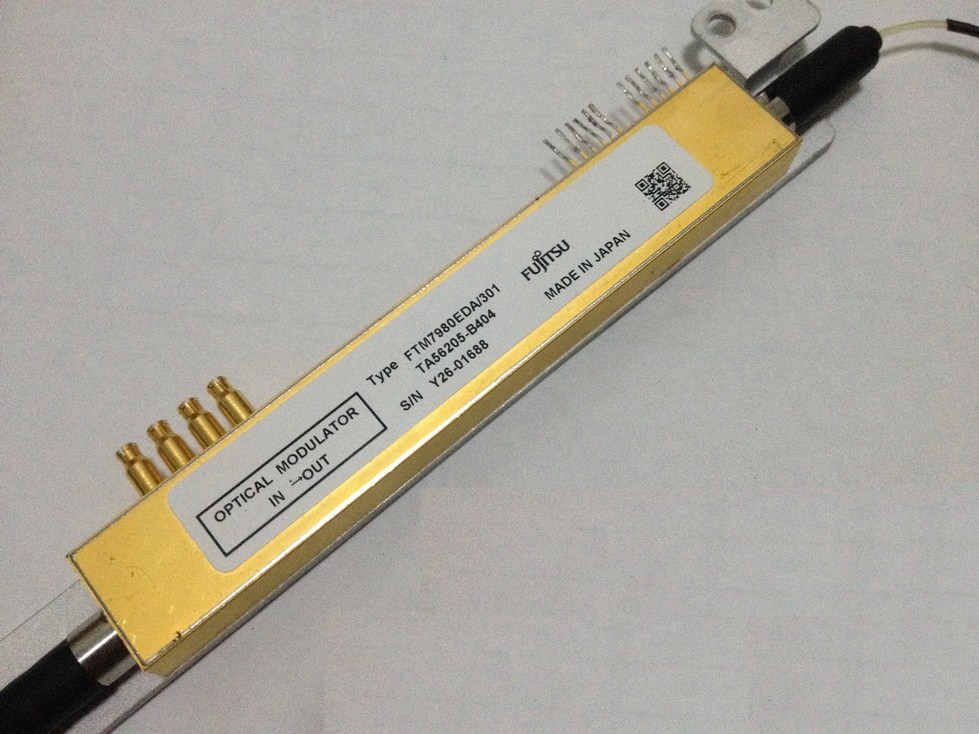

- 40Gbps PM-BPSK Modulator, Fujitsu FTM7980EDA, Lithium Niobate DP-BPSK Modulator
this optical modulator is a Ti:LiNbO3 DP-BPSK Dual-Drive Mach-Zehnder modulator with modulation speed of up to 21.5Gbaud. this modulator comprises 3dB coupler, two BPSK modulators, polarization rotator followed by the polarization beam combiner and the built-in monitor PD chips for automatic bias control (ABC) for the compensation system of DC-drift and other phenomena.
the FTM7980EDA modulator supports the advanced Dual Polarization-DPSK modulation scheme. in general, the DPSK format is particularly suitable for 40G ULH applications; in combination with coherent detection the 2*20G polarization multiplexed version is very attractive as an upgrade to existing 10G links to a 40G transmission rate without modification of the link.
Features
43Gbps (21.5Gbaud) Mach-Zehnder modulator for " DP-BPSK" transmission format
2 PSK modulators and Polarization Beam Combiner are integrated in one package.
RF interface: GPPO dual drive
Low drive voltage: < 3.5V (2Vp)
Built-in monitor photo diodes for each polarization.
Application
High end 40G transmission
? System
? ULH and Submarine over existing 10G links
? 40G Transponders and Line-cards
Radio over Fiber Transmission
