| Model Number: | T.sbzh1.5-20pd-Adc |
|---|---|
| Brand Name: | Sumitomo |
| Place of Origin: | Japan |
Quick Details
Specifications
Product Specifications/Features

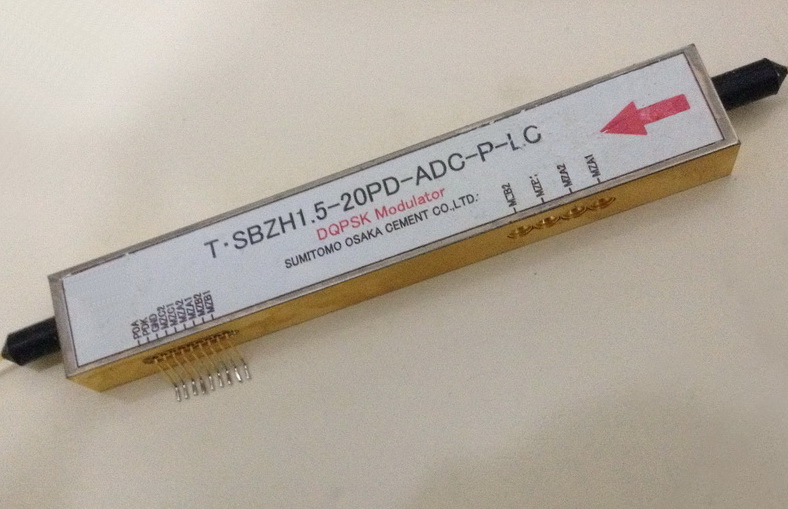

- 40Gbps DQPSK Modulator, Sumitomo T.SBZH1.5-20PD-ADC, Dual Drive IQ Modulator
this optical modulator is a DQPSK Dual-Drive( Quad GPPO) Mach-Zehnder modulator with modulation speed of up to 22.5Gbaud.
the structure of dual drive MZ interferometers enables exact phase match or arbitrary phase difference control, which make it ideal for some novel application.
this optical modulator integrates a monitor PD chip and coupler function for automatic bias control (ABC) for the compensation system of DC-drift and other phenomena.
Features
Dual-Drive for each Child MZ Interferometer, which enables RF Phase Fine Tuning.
Low Drive Voltage, RF VπVoltage 4.0V@20Gps, Typ.
Separated DC Bias Port, Integrated Monitor Photodiode for Auto Bias Control
Low Insertion Loss, ≤9dB Typ.
Polarization Maintaining Fiber at both Input and Output
Applications
40Gps DQPSK Optical Transmission System
Measurement Equipment for High Speed Telecommunications
4QAM, 16QAM, 64QAM Modulation.
Radio over Fiber Applications, Ultra High ER Optical Pulse Generation.
