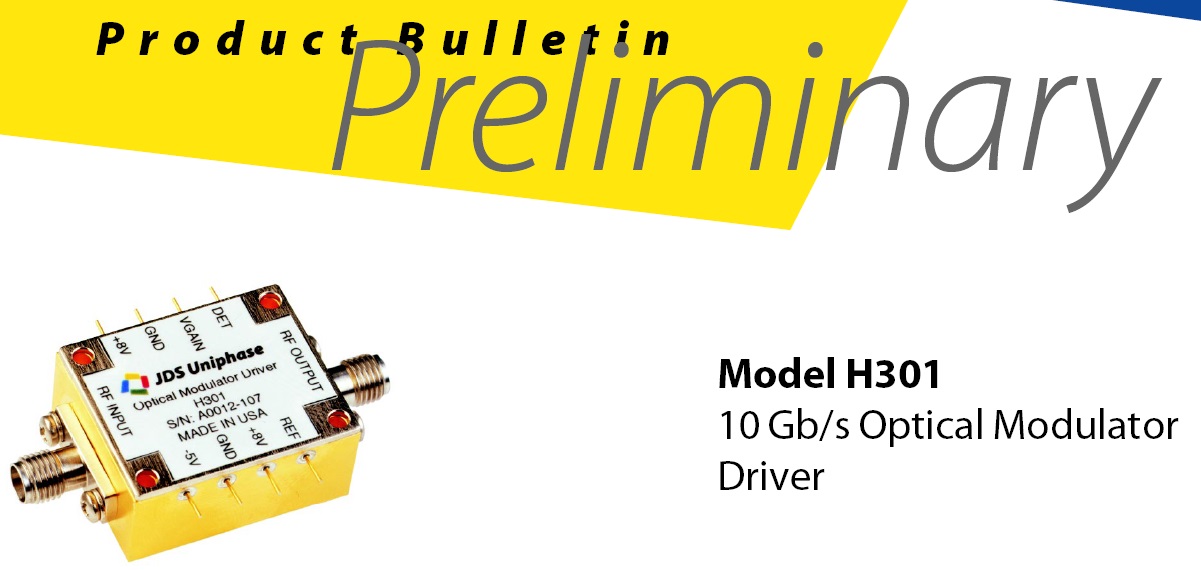

10Gbps Optical Modulator Driver, JDSU H301 Series, Single Input RF Amplifier

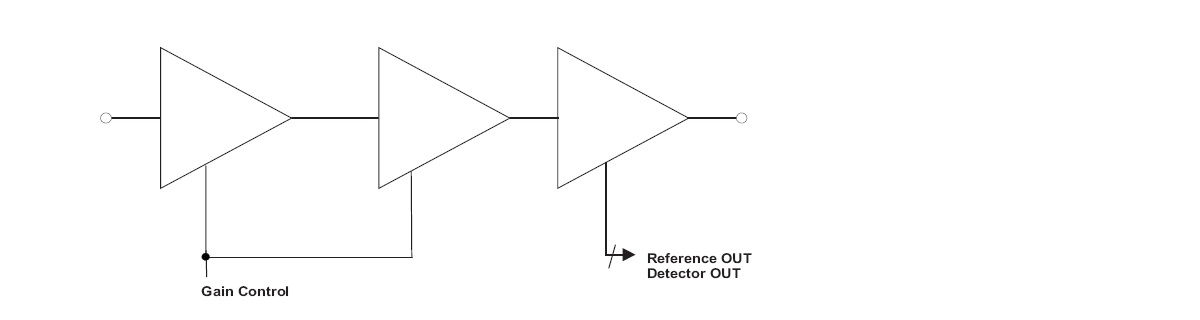

the H301 optical modulator driver provides a high-quality, single-ended voltage to drive an external laser modulator. Typical applications include driving EML, EAM, and Mach-Zehnder style modulators. the flat gain and flat group delay response yield a high quality, low-jitter electrical drive signal. the driver meets applicable SONET and SDH standards for OC-192 10 GB/s optical transmitters and includes reference and detector outputs to enable external temperature-compensated control of output drive levels. the module has field replaceable input and output K-connectors for the input/output drive signals and an eight-pin connector for the detector, reference, and power interfaces.

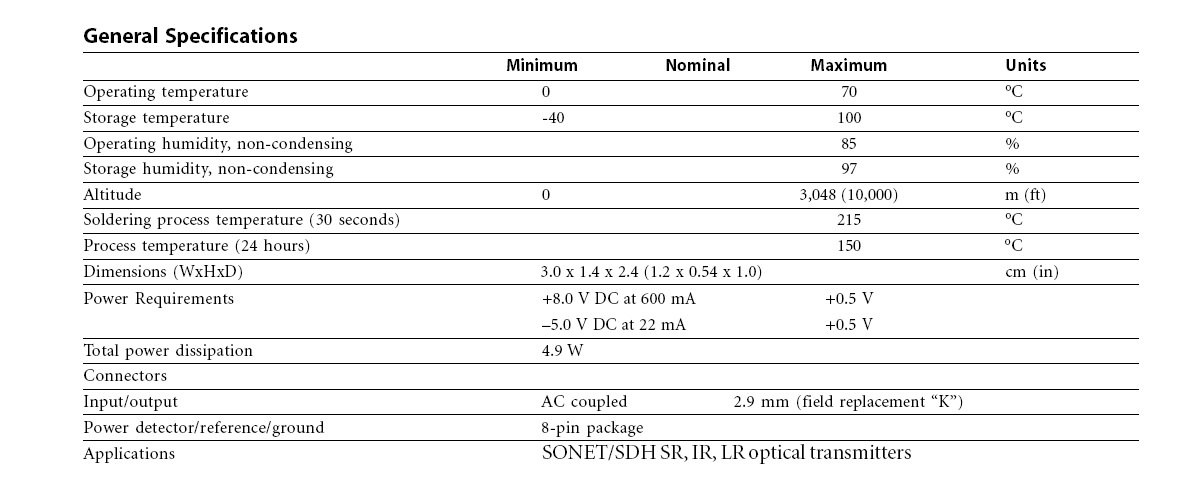

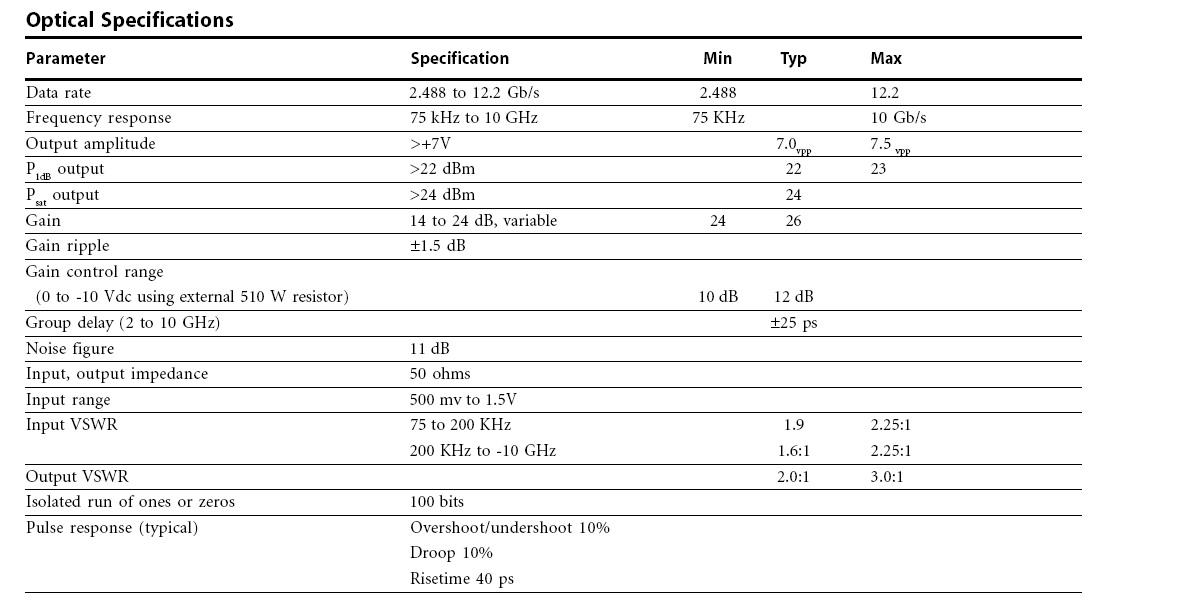

Key Features

• 26dB gain to 10GHz, 24dBm saturation output power
• Low power, 4.9 W; swing amplitude, 7Vp-p
• Extended temperature operation
• Low jitter
• Data rates from 2.488 to 12.2 GB/s

Applications

• SONET/SDH equipment
• SR, IR, LR optical transmitters
