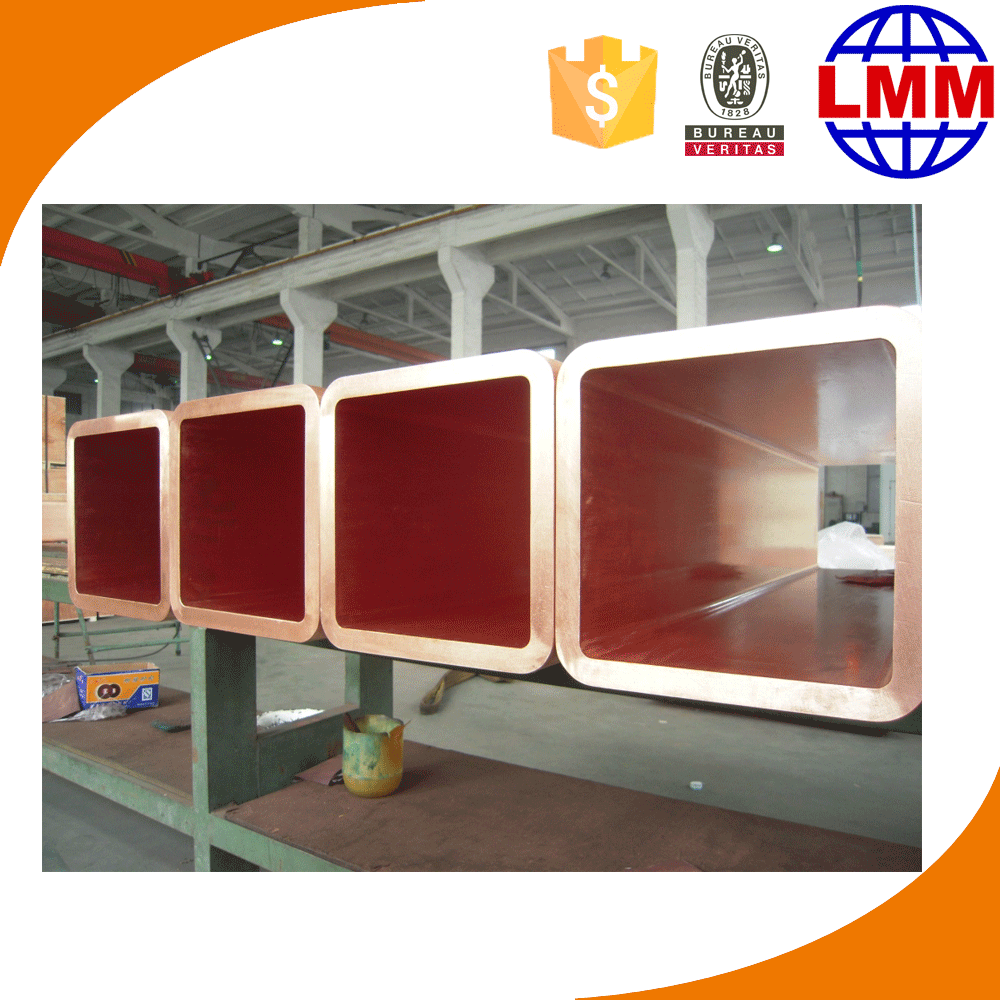

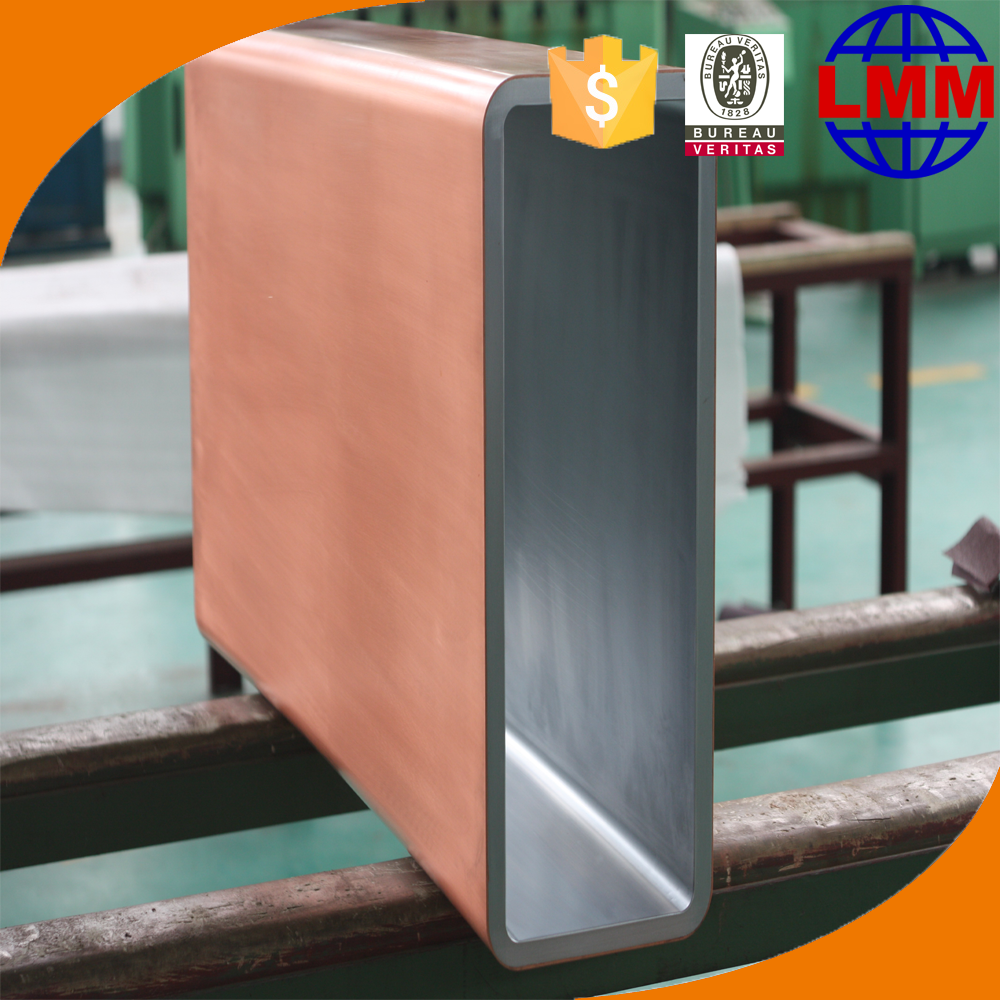

Copper Mould Tube
1.Material:CuDHP,CuAg0.1,CuCrZr,CuNiBe,CuCoNiBe alloy etc |
2.Coating:Cr/Ni/NiCo etc with various shapes |
3.Taper:designed by ourself,including single taper,double taper,triple taper,quadruplicate taper,parabolic taper etc |
4.Hardness:>95HB |
name |
size |
CAMBER RADIUS |
THINKNESS |
LENGTH |
REMARKS |
Square & RectangleCopper tubes |
Square 50*50～650*650 Rectangle (100-500)*650 |
3000～17000 Also straight |
6～50 |
602～1100 |
with slot single taper,double taper,tripe taper,quadruplicate taper,parabolic taper and varius kinds of continous taper high effciencyCopper mould tubes |
Round copper tubes |
Φ110~Φ1150 |
5000～17000 Also straight |
10～50 |
602～900 |
with slot double taper,quadruplicate taper,parabolic taper and varius kinds of continous taper high effciencyCopper mould tubes |
Non-standardCopper mould tubes Beam BlankCopper mould tubes |
535-150*120-70 |
6000～14000 |
12～50 |
700～1016
|
with slot single taper,double taper,tripe taper,quadruplicate taper,parabolic taper |
Material |
Item |
Temp |
Unit |
Material |
|
|
|
CuDHP |
CuAg0.1 |
CuCrZr |
Copper mould tubes Chemical Composition |
|
|
|
P 0.015～0.040 |
Ag0.08～0.12 P 0.004～0.012 |
Cr 0.30～1.20 Zr 0.03～0.30 |
Physical properties |
Electical conductibvity |
20 |
%IACS |
83 |
95 |
80 |
Thermal conductivity |
20 |
W/(m.K) |
340 |
372 |
330 |
Coefficient of thermal expansion |
20-300 |
10^ -6/K |
17.1 |
17.1 |
17.2 |
