| Output Current: | 30A |
|---|---|
| Output Voltage: | 12V |
| Input Voltage: | 110/220V |
| Output Power: | 301 - 400W |

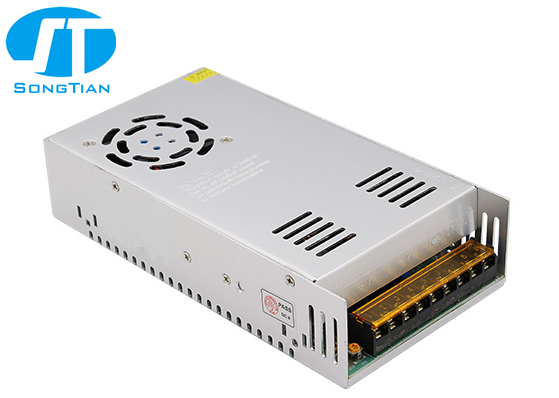

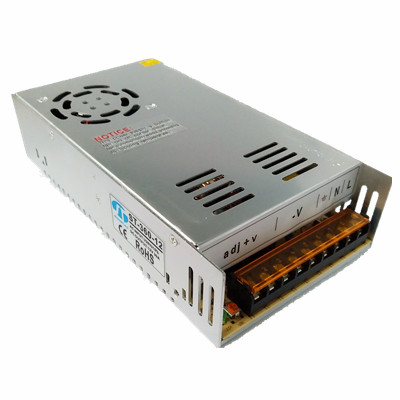

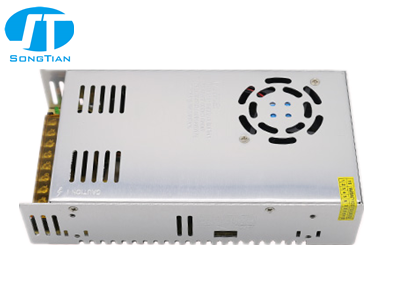

| Model Number: | 12V30A360W |
| Brand Name: | songtian |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Specification:12 v30a 360 w
Application: monitoring, communication, LED display, industrial control, radio and television, computer networks, medical equipment, intelligent monitoring features:
Low low price, high reliability
Trapped inside a low filter, low ripple
Low have short circuit
Small volume, light weight
Low enclosed into current suppression circuit
Easy to use, wide range of USES
High efficiency, low working temperature
Low 105 ℃ output capacitor, long service life
Low in conformity with the voltage used all over the world

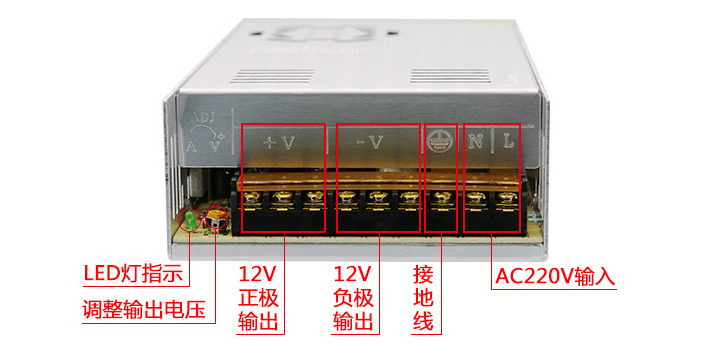

this product each connection with wiring protection cover, to prevent electric shock, use more secure!
Low voltage input
Low miniaturization
Low short circuit/overload/over-voltage protection function
Low 100% full load aging test
the input voltage & frequency range -- -- -- -- -- -- -- -- -- -- 85 ~ 264 vac / 47 ~ 264 hz
Start the impulse current -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 20 a @ 120 vac (cold boot)
Output the adjusting range is -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- plus or minus 10% (rated output voltage)
Overload protection -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 105% ~ 200% (rated load), since the recovery
Overvoltage protection -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 115% ~ 135% (rated output voltage)
Short circuit protection -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- - since the recovery
Output start time -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 2 S or less @ 120 vac acuities were 1.0 S @ 230 vac
Output hold time -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 10 ms or @ 120 vac, acuity 20 ms @ 230 vac
Dielectric strength -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- input - output: AC1500V, 1 min
Input - casing: AC1500V, 1 min
Output - casing: DC500V. 1 min
Work environment -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- - 10 ℃ to 50 ℃; 20% ~ 90% RH (no lon)
Safety standards -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- EN/UL60950 design reference
Emc standards -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- design reference EN55022 Class B;
EN61000-4-2/3/4 / - 5 / - 6-11
Size (length * width * height) -- -- -- -- -- -- -- -- -- -- -- 210 * 115 * 50 mm
