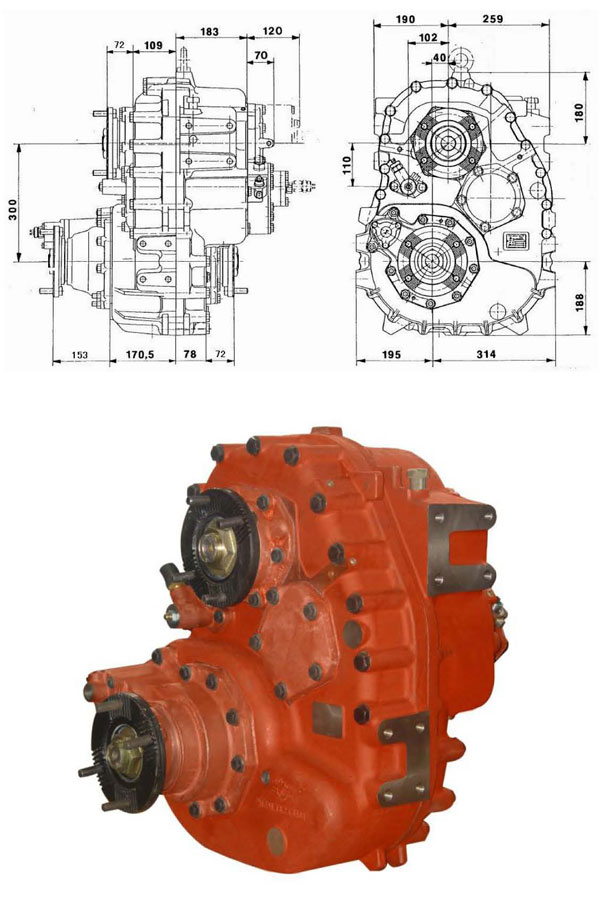

the following example is for you reference.





Feature:

* Transfered technology from Steyr
* Designated for China military vehicles
* Exported to many overseas markets





Technical details:
Max Input Torque:18000Nm
Max.Input Speed/direction:2800rpm/clockwise
Center Distance:300mm
on-road Ratio:0.89
off-road Ratio:1.536
Shifting operation:3-pneumatic,Backword;3-mechanic,Backword or forward
Front axle Output Operation(or differential lock operation):Pneu.Operation with indication swith
Torque Ratio Proportion: 1:2.214\1:2.696(differential is optional)
Air pressure:6.5~8 bar
85W/90(GL-5) Lubricant oil(add to oil level):8.4L(with Differential);9.0L(without Differential)
Total weight:350Kg(with Differential)  340Kg(without Differential)
Input Flange:DIN180, T180(ISO8667)
Front Axle Output Flange:DIN180, T165, T180(ISO8667)
Rear Axle Output Flange:DIN180, T180(ISO8667)
N200 P.T.O or connecting device for ZF8605 oil pump is optional
the transfer case can be modified as per customer's requirements.





Company introduce:

Zhuzhou Gear Co., Ltd was founded in 1958 and now is a subsidiary of Weichai Power. after 60 years'
Development and growth, the company has already become a key enterprise in China gear industry,
" Top 500 China Machinery Companies", " China's Top 100 Automotive Parts Suppliers", "Management
Innovation Demonstration Enterprise of China Machinery Industry" and " China's Gear Industry
Standard Drafting Unit Specified". We are principally engaged in design, manufacturing and sales
of gear drivelines such as transmissions, transfer cases and planetary drives.

Thanks to the complete quality management system, the company is ISO9001, QS9000, TS16949 and GJB9001B
 certified, and won the title of new and high technology enterprise of Hunan province. More over,
" ZHUCHI" has become a well-known brand.


We have built up two business platforms, transmissions and special drivelines with the annual capacity
8 million pieces of gears and shafts, 400,000 pieces of transmissions and 80,000 pieces of transfer
Cases and planetary drives. the company is an up-to-date transmission design and manufacturing base
and professional transfer case and planetary drive production base.


with state-level technical center and provincial gear inspection and supervision station, Zhuzhou Gear
Enjoys technology advantage in the industry. Supported by Weichai Power Group, we aim to build the
Company into a professional supplier of gears and drivelines.





Our main products:

Transfer case,Planetary drive,Transmission,New engery transmission
