| Type: | Heat Sinks |
|---|---|
| Product Name: | IGBT heat sink |
| Size: | 500*250*100mm |
| Material: | aluminum+heat pipes |
| Process: | Skiving |
| Surface treatment: | Andolize |
| factory: | yes |
| OEM&ODM: | Yes |
| Samples: | YES |
| TDP: | 1500W---1800W |
| Design: | used with fan |
Quick Details
Specifications

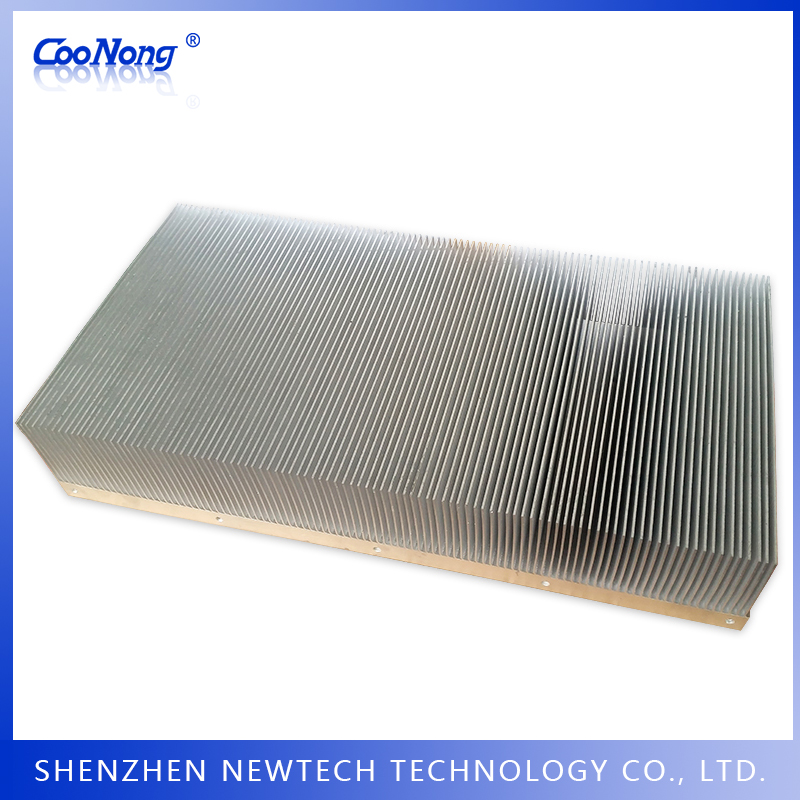

Hot selling aluminum Skive technology custom high power IGBT/APF large heat sink with heat pipe
1 What is skive heat sink?
Similar to Gang saw cut fins, Skived fin heat sink is also a common manufacturing method to make prototype heat sinks. Skived fin heat sinks are made from raw metal block where fins are literally carved out of the heat sink base by a special blade tool. since both fins and base are shaped from a single piece of raw metal block, skived fin heat sink are considered to be the best thermal conductivity between fins and base. Skiving method typically is used for aluminum and copper heat sink. Although it could be more costly than extrusion, skiving method is an ideal manufacturing method for prototyping.
1 What is skive heat sink?
Similar to Gang saw cut fins, Skived fin heat sink is also a common manufacturing method to make prototype heat sinks. Skived fin heat sinks are made from raw metal block where fins are literally carved out of the heat sink base by a special blade tool. since both fins and base are shaped from a single piece of raw metal block, skived fin heat sink are considered to be the best thermal conductivity between fins and base. Skiving method typically is used for aluminum and copper heat sink. Although it could be more costly than extrusion, skiving method is an ideal manufacturing method for prototyping.
Model |
NT-20170228 | ||
Product Name |
IGBT heat sink | ||
Material |
C1100 Copper, Also can be Aluminum. | ||
Product Size |
500*250*100mm, customized size can be make. | ||
Application |
| ||
Standard or Non-Standard |
Custom heat sink,the TDP can be 1800-2000W if assemble fan. | ||
Products Catalogue |
Skived fin heatsink, Extruded heatsink, LED Heatsink, Soldering Heatsink, heatpipe heatsink, Chassis heatsink,vapor chamber, fin heatsink, DC Axial fan | ||
Stocking |
Yes | ||
Process |
Skived technology. Other process such as extrusion technology | ||
Factory |
10 Years factory | ||
Samples time |
2 days | ||
Production Lead time: |
2 days for available designs, Customized: 18~25 days |
