| Usage: | Universal Testing Machine |
|---|---|
| Power: | Electronic |
| Model Number: | HPS3520 |
| Brand Name: | HELPASS |
| Place of Origin: | China (Mainland) |
| Product name: | HPS3520 universal battery impedance tester for 18650 battery |
| Application: | Battery Internal Resistance Testing |
| Display digits: | 4 digits |
| Displayer: | LCD display |
| Accuracy: | Resistance: 0.1% Voltage: 0.1% |
| Voltage: | 0-30V |
Quick Details
Specifications

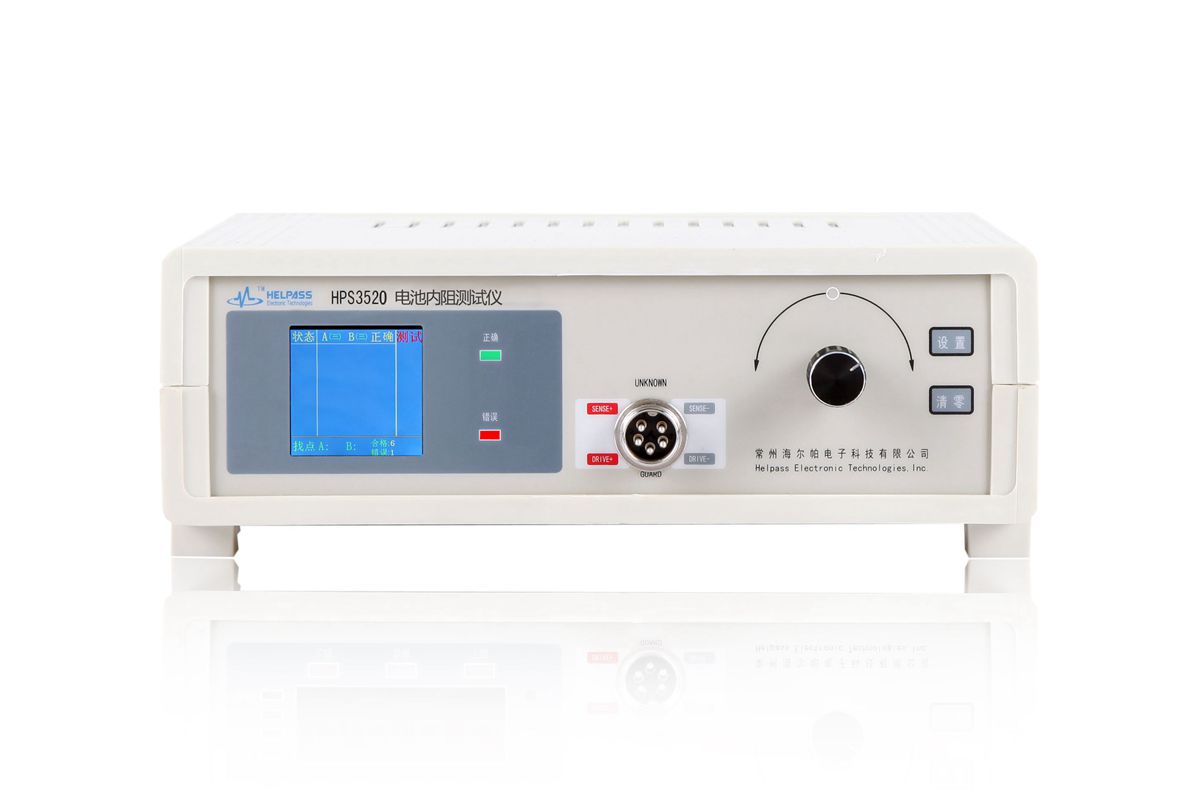

HPS3520 universal battery impedance tester for 18650 battery
Application;
Specification
Application;
Various types of batteries such as lithium battery, NI-MH battery, nickel-cadmium cell,alkaline battery, iron phosphate battery, lead-acid battery and 18650 battery.
UPS Online Measurement
Super Capacitor ESR Measurement
Low resistance character of electromechanical components and various contact resistance tests under low current conditions
Specification
Model |
HPS3520 |
Features | |
Displayer |
TFT true color LCD display |
Display Digits |
4 digits |
Measurement Function | |
Measurement Parameters |
AC resistance (R),DC voltage (V) |
Basic Accuracy |
Resistance:0.1%,Voltage:0.1% |
MeasurementRange |
Battery Resistance R:0－2000mΩ, Resolution:0-200mΩ:0.1mΩ;0～2000mΩ:1mΩ; Battery voltage V:0－30V, Resolution:0-5V:0.001V;0～30V:0.01V; |
Measurement Speed(time/sec) |
Slow:2 Medium:15 Fast:20 |
Range Mode |
Auto,Keep |
Trigger Mode |
Internal,Manual,External |
Correction Function |
Short-circuit reset for all range |
MeasurementTerminals |
Five terminals |
Display Method |
Direct reading,Absolute deviation and Relative Deviation display |
Other |
Test line damage detection |
Test signal | |
Signal Source |
AC 1kHz open-circuit voltage <20mV,Measurement current:<150mA |
Sorting and interfaces | |
Sorting Function |
Built-in comparator, upper and lower limits, sound and Light alarm, GD/NG output signal |
Beep |
Short,Continuity and off |
Interface |
RS-232C interface(Optional),Handler(Optional),Switch output(Optional) |
General Specification | |
Working Environment |
0°C－40°C, ≤90%RH |
Power Supply |
198V－242V(AC),47.5Hz－63Hz |
