| Model Number: | ES-T3-RJ45 |
|---|---|
| Brand Name: | ETU |
| Place of Origin: | China (Mainland) |
| Material/Components: | Zinc alloy +PCB board |
| Safety/Quality Approvals: | ISO9001:2008 |
| Data rate: | 10/100M |
| DDM: | Yes |
| Place of origin: | Made in China |
Quick Details
Specifications
SFP RJ45 10/100M Cisco Compatible Copper-T SFP Optical Transceiver Module
Specification
Data rate: 10/100M
Type: Copper
Distance: 100M
Connector: RJ45
DDM: Yes
Place of origin: Made in China
Port:Shenzhen
Specification
Data rate: 10/100M
Type: Copper
Distance: 100M
Connector: RJ45
DDM: Yes
Place of origin: Made in China
Port:Shenzhen
Features
1.Hot-pluggable SFP footprint
2.Extended case temperature range (0°C to +70°C )
3.Fully metallic enclosure for low EMI
4.Compact RJ-45 connector assembly
5.It supports RX_LOS(Loss of Signal) function
6.Compatible with IEEE802.3u
7.Access to physical layer IC via 2-wire serial bus
8.A 10/100BASE-TX/ 100BASE-FX converter
Optical module used in Ethernet, SDH, Sonet,Can be compatible with CISCO 2900 Series,CISCO 4000 Series, CISCO 5000 Series,HUAWEI, the pole into, D-Link, ZTE, HP, juniper and other equipment.
Our products require strict testing standards,standard packing form,to provide customers with quality service and timely delivery cycle.

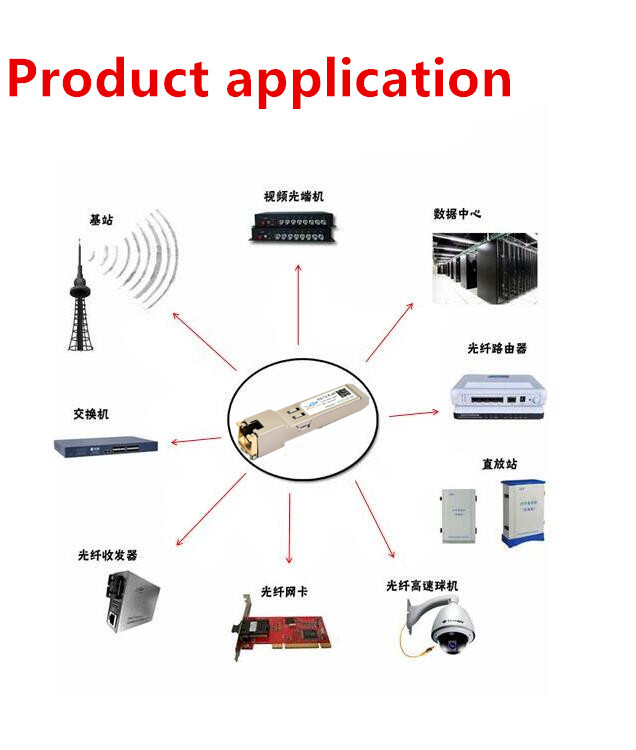

Scope of application: switch, Ethernet, data center, SDH, SONET, ATM
Package type: Individual package or 10pc/package
10G SFP+ optical transceiver
ETU Model Cisco Model Product description
ESP8592-3LCD03 SFP-10G-SR 10G SFP+ SR MM 850nm 300M LC connector with DDM
ESP3192-3LCD02 SFP-10G-LRM 10G SFP+ LR MM 1310nm 220M LC connector with DDM
ESP3192-3LCD10 SFP-10G-LR 10G SFP+ LR SM 1310nm 10KM LC connector with DDM
ESP5592-3LCD40 SFP-10G-ER 10G SFP+ ER SM 1550nm 40KM LC connector with DDM
ESP5592-3LCD80 SFP-10G-ZR 10G SFP+ ZR SM 1550nm 80KM LC connector with DDM
SFP optical transceiver
ETU Model Cisco Model Product description
ES8512-3LCD05 GLC-SX-MM 1.25G SFP MM 850nm 550M LC connector with DDM
ES3112-3LCD10 GLC-LH-SMD 1.25G SFP SM 1310nm 10KM LC connector with DDM
ES3112-3LCD40 GLC-EX-SMD 1.25G SFP SM 1310nm 40KM LC connector with DDM
ES5512-3LCD80 GLC-ZX-SMD 1.25G SFP SM 1550nm 80km LC connector with DDM
ES3103-3LCD2 GLC-GE-100FX 155M SFP MM 1310nm 2KM LC connector with DDM
ES-T1-RJ45 GLC-T 1000M Copper-T RJ45 100M
Our products require strict testing standards,standard packing form,to provide customers with quality service and timely delivery cycle.
Scope of application: switch, Ethernet, data center, SDH, SONET, ATM
Package type: Individual package or 10pc/package
10G SFP+ optical transceiver
ETU Model Cisco Model Product description
ESP8592-3LCD03 SFP-10G-SR 10G SFP+ SR MM 850nm 300M LC connector with DDM
ESP3192-3LCD02 SFP-10G-LRM 10G SFP+ LR MM 1310nm 220M LC connector with DDM
ESP3192-3LCD10 SFP-10G-LR 10G SFP+ LR SM 1310nm 10KM LC connector with DDM
ESP5592-3LCD40 SFP-10G-ER 10G SFP+ ER SM 1550nm 40KM LC connector with DDM
ESP5592-3LCD80 SFP-10G-ZR 10G SFP+ ZR SM 1550nm 80KM LC connector with DDM
SFP optical transceiver
ETU Model Cisco Model Product description
ES8512-3LCD05 GLC-SX-MM 1.25G SFP MM 850nm 550M LC connector with DDM
ES3112-3LCD10 GLC-LH-SMD 1.25G SFP SM 1310nm 10KM LC connector with DDM
ES3112-3LCD40 GLC-EX-SMD 1.25G SFP SM 1310nm 40KM LC connector with DDM
ES5512-3LCD80 GLC-ZX-SMD 1.25G SFP SM 1550nm 80km LC connector with DDM
ES3103-3LCD2 GLC-GE-100FX 155M SFP MM 1310nm 2KM LC connector with DDM
ES-T1-RJ45 GLC-T 1000M Copper-T RJ45 100M
