| Model Number: | osw-d1x1 |
|---|---|
| Brand Name: | coreray |
| Place of Origin: | China (Mainland) |

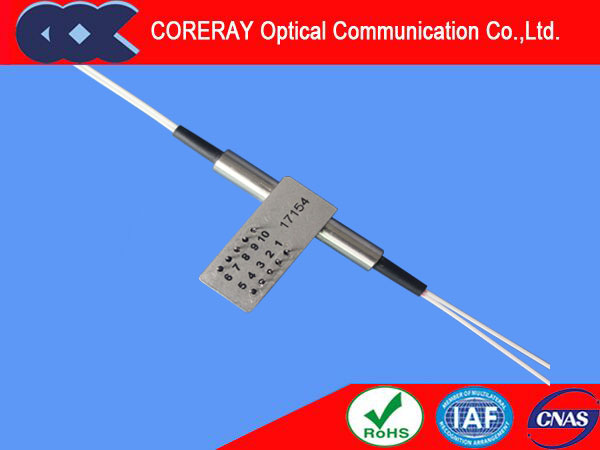

| name: | D1X1 optical switch |
Quick Details
Specifications
D1X1 optical switch Features
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
D1X1 optical switch Application
Optical Signal Switching and Routing
Optical Network Protection and Restoration
Optical Network Monitoring
Video Distribution
Instrumentation Resource Sharing
Military Communications
Parameters |
|
OSW-D1x2 | ||
Wavelength Range |
nm |
650～1310 |
1260～1670 |
|
Testing Wavelength |
nm |
650/780/850/980/1064/1310 |
1310/1490/1550/1625/1650 |
|
Insertion Loss |
dB |
Typ:0.6,Max:1.0 |
Typ:0.5,Max:0.8 |
|
Return Loss |
dB |
≥35 |
≥50 |
|
Crosstalk |
dB |
≥40 |
≥50 |
|
PDL |
dB |
≤0.05 | ||
WDL |
dB |
≤0.25 | ||
TDL |
dB |
≤0.25 | ||
Repeatability |
dB |
≤±0.02 | ||
Power supply |
v |
3.0 or 5.0 | ||
Lifetime |
Cycle |
≥107 | ||
Switch Time |
ms |
≤8 | ||
Transmission Power |
mW |
≤500 | ||
Operation Temperature |
℃ |
-40～+85 | ||
Storage Temperature |
℃ |
-40～+85 | ||
Weight |
g |
16 | ||
Dimension |
mm |
(L)27×(W)12.6×(H)8.5(±0.2) | ||
D1X1 optical switch Pins
Optical Path |
|
Electric Drive |
|
Sensor Status | |||||||||||||
D1x2 |
1 |
5 |
6 |
10 |
3－4,7－8 |
2－3,8－9 |
|||||||||||
Latching |
P1-P2,1-2 |
N/A |
N/A |
GND |
+5V |
OPEN |
CLOSE |
||||||||||
P1-P3,1-3 |
+5V |
GND |
N/A |
N/A |
CLOSE |
OPEN |
|||||||||||
Non-Latching |
P1-P2,1-2 |
N/A |
N/A |
N/A |
N/A |
OPEN |
CLOSE |
||||||||||
P1-P3,1-3 |
+5V |
N/A |
N/A |
GND |
CLOSE |
OPEN |
|||||||||||
D1X1 optical switch Electrical parameters
|
|
Voltage |
Current |
Resistor |
5V |
Latching |
4.5~5.5 |
36~44mA |
125? |
5V |
Non-Latching |
4.5~5.5 |
26~32mA |
175? |
3V |
Latching |
2.7~3.3 |
54~66mA |
50? |
3V |
Non-Latching |
2.7~3.3 |
39~47mA |
70? |
D1X1 optical switch Ordering Information:OSW-D1x2-A-B-C-D-E-F-G
A |
B |
C |
D |
E |
F |
G |
Mode |
Wavelength |
Voltage |
Control Model |
Fiber Diameter |
Fiber Length |
Connector |
SM:9/125um M5:50/125um M6:62.5/125um |
85:850nm 13:1310nm 14:1490nm 15:1550nm 162:1625nm 165:1650nm 13/15:1310/1550nm |
3:3v 5:5v |
L:Latching N:Non-Latching |
25:250um 90:900um 20:2.0mm 30:3.0mm |
05: 0.5m 10: 1.0m 15: 1.5m |
OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC |
