Parameters

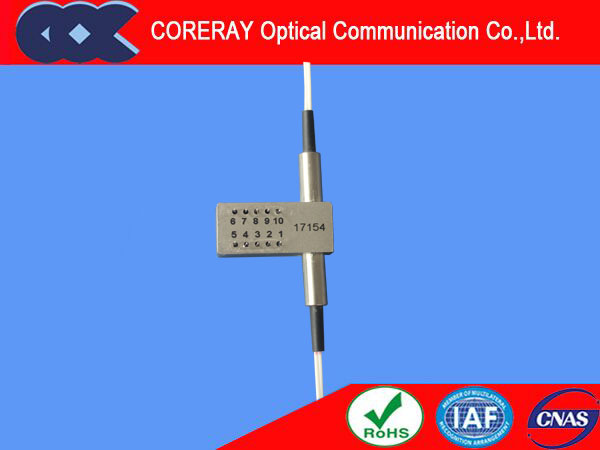

COC-OSW-2×2A

Wavelength Range

nm

1260~1625

Operating Wavelength

nm

1310/1490/1550/1620

Insertion Loss

dB

Typ:0.6  Max:0.8

Return Loss

dB

≥50

Crosstalk

dB

≥60

PDL

dB

≤0.05

WDL

dB

≤0.25

TDL

dB

≤0.25

Repeatability

dB

≤±0.02

Power Supply

v

3.0 or 5.0

Lifetime

times

≥10⁷

Switch Time

ms

≤8

Transmission Power

mW

≤500

Operating Temperature

℃

-20~+70

Storage Temperature

℃

-40~+85

Weight

g

25

Dimension

mm

(L)55×(W)30×(H)12.8(±0.1~0.2mm)

Control Model

Electric Drive

Status Sensor

Optical Route

Pin 1

Pin 2

Pin3- Pin4

Latching

V+

GND

Open

P1-P3,P2-P4

GND

V+

Close

P1-P4,P2-P3

Non-latching

V+

GND

Close

P1-P3,P2-P4

GND

GND

Open

P1-P4,P2-P3

Specifications

Voltage

Current

Resistance

5V   Latching

4.5~5.5

36~44mA

125Ω

5V   Non-latching

4.5~5.5

26~32mA

175Ω

3V   Latching

2.7~3.3

54~66mA

50Ω

3V   Non-latching

2.7~3.3

39~47mA

70Ω

A

B

C

D

E

F

G

H

Mode

Wavelength

Voltage Type

Control Model

Fiber Type

Fiber Diameter

Fiber Length

Connector

S:SM

M:MM

85: 850nm

13: 1310nm

14: 1490nm

15: 1550nm

16: 1625nm

13/15:1310/1550nm

X:Others

3: 3V

5: 5V

L: Latching

N:Non- Latching

5:50/125

6:62.5/125

9: 9/125

X: Others

25:250um

90:900um

20:2.0mm

X: Others

05:0.5m

10:1.0m

15:1.5m

X:Others

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

STP: ST/PC

STA: ST/APC

LP: LC/PC

LA: LC/APC

X: Others
