| Type: | OLED |
|---|---|
| Model Number: | AMS395GB02 |
| Brand Name: | Bright LCD |
| Place of Origin: | China (Mainland) |
| Size: | 4.0 inch |
| Resolution: | 360X640 |
Quick Details
Specifications
Basic Info
- Model NO.: AMS395GB02 AMS395QH01
- Screen Size: 4.0inch
- Application: Mobile Phone
- Aspect ratio: 16:10
- Feature: Touch Display
- Optimum Resolution: 360X640
- Type: Amoled
- Widescreen: Not Widescreen
- Response Time: 3ms
- 3D: Not 3D
- Interface Type: Mipi
- Trademark: Bright-LCD
- Transport Package: Tray, Carton
- Specification: 53.76 mm? 97.16 mm? 2.21 mm
- Origin: China

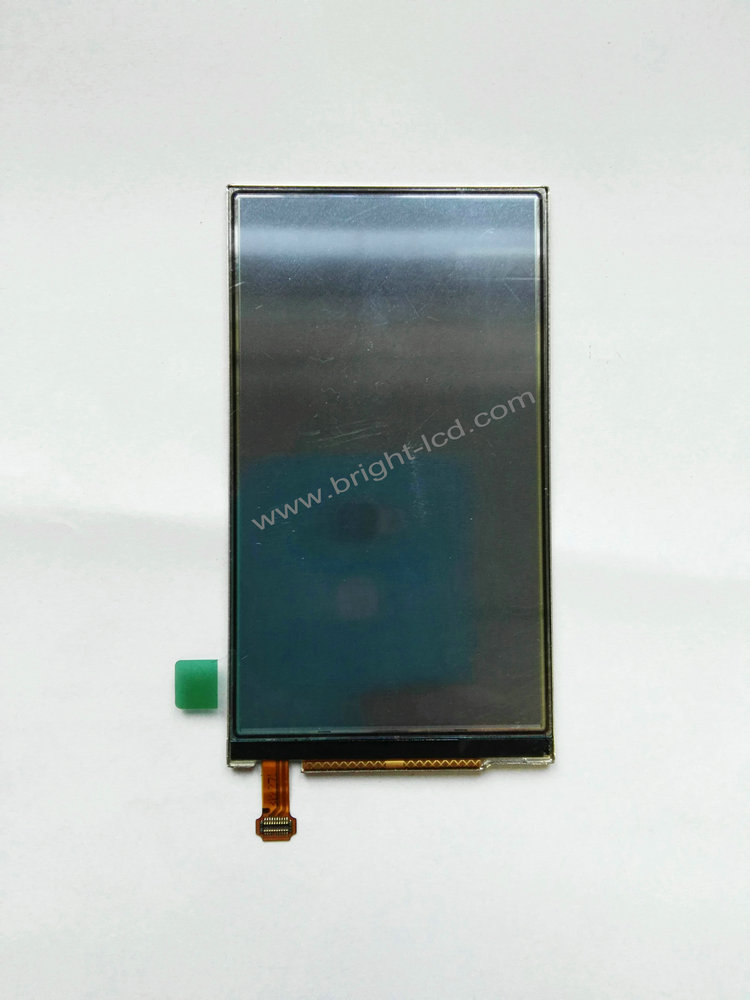

Product Description
Technology: AM OLED
Display format: 360 x 640 RGB
Pixel Density:186 ppi
Weight [g]:22.9 g
Image mode: Normally black
Functions: Automatic current limit, Low power mode, High brightness mode DIMENSIONS
Diagonal size [inch]: 4.0"
Display module size: 53.76 mm x 97.16 mm x 2.21 mm
Glass size (width x height x thickness): 52.76 mm x 94.36 mm x 0.61 mm
Active area size: 49.14 mm x 87.36 mm
Pixel height to width ratio: 1:1
Sub pixel pitch: 0.0455 mm x 0.1365 mm ELECTRICAL
Interface: MIPI DSI 1 lane
Supply voltage: VPNL 3.7 V VDDI 1.8 V
I/O voltage, sideband signals 1.8 V
Display identification: Display supplier code ID and version codes readable via DSI. OPTICAL
Pixel arrangement: RGB stripe
Color gamut (NTSC ratio): 110 %
Polarizer absorption angle: 135°
Output luminance: 300 CD/m2
Refresh rate: 60 Hz
Number of colours: 16.7M (24-bit)
65k (16-bit) ENVIRONMENTAL
Display identification: Display supplier code ID and version codes readable via DSI. OPTICAL
Pixel arrangement: RGB stripe
Color gamut (NTSC ratio): 110 %
Polarizer absorption angle: 135°
Output luminance: 300 CD/m2
Refresh rate: 60 Hz
Number of colours: 16.7M (24-bit)
65k (16-bit) ENVIRONMENTAL
Operational temperature: -15 °C to +70 °C
Storage temperature: -40 °C to +85 °C
Display format: 360 x 640 RGB
Pixel Density:186 ppi
Weight [g]:22.9 g
Image mode: Normally black
Functions: Automatic current limit, Low power mode, High brightness mode DIMENSIONS
Diagonal size [inch]: 4.0"
Display module size: 53.76 mm x 97.16 mm x 2.21 mm
Glass size (width x height x thickness): 52.76 mm x 94.36 mm x 0.61 mm
Active area size: 49.14 mm x 87.36 mm
Pixel height to width ratio: 1:1
Sub pixel pitch: 0.0455 mm x 0.1365 mm ELECTRICAL
Interface: MIPI DSI 1 lane
Supply voltage: VPNL 3.7 V VDDI 1.8 V
I/O voltage, sideband signals 1.8 V
Display identification: Display supplier code ID and version codes readable via DSI. OPTICAL
Pixel arrangement: RGB stripe
Color gamut (NTSC ratio): 110 %
Polarizer absorption angle: 135°
Output luminance: 300 CD/m2
Refresh rate: 60 Hz
Number of colours: 16.7M (24-bit)
65k (16-bit) ENVIRONMENTAL
Display identification: Display supplier code ID and version codes readable via DSI. OPTICAL
Pixel arrangement: RGB stripe
Color gamut (NTSC ratio): 110 %
Polarizer absorption angle: 135°
Output luminance: 300 CD/m2
Refresh rate: 60 Hz
Number of colours: 16.7M (24-bit)
65k (16-bit) ENVIRONMENTAL
Operational temperature: -15 °C to +70 °C
Storage temperature: -40 °C to +85 °C
and other small size OLED from 0.49inch-2.4inch.
