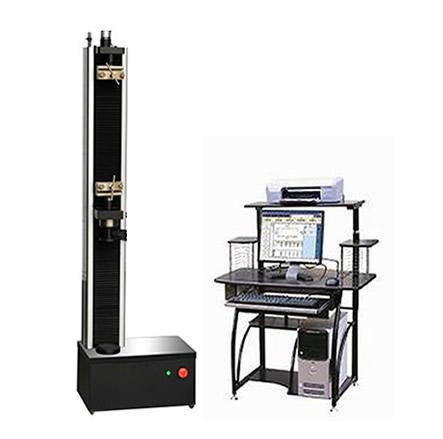

Digital Display Universal Material Tensile Tester

GENERAL INTRODUCTION --Digital Display Universal Material Tensile Tester

Digital Display Economic Universal Material Tensile Tester Integrates Electronic Technology with Mechanical Drive Technology;

Wide Accurate Accelerating Speed as Well as Measurement Range with High Accuracy & Flexibility to Measure and Control Load,
Travel;

Simple and Compact Architecture & Easy-to-Access Operation Enable Tensile Tester Can Implement Test by Placing On Floor Directly;

Mainly Applied for Various Tensile Test Purpose that Shall Include Tensile Test, Elongation Test and so On;

FUNCTIONAL FEATURE--Digital Display Universal Material Tensile Tester

this tensile tester aims to provide perfect mechanical force property test and analysis for various of metal products, non-metallic
Products as well as relevant compounding materials and products.

It is designed with automatic data calculation & process of maximum testing force value as well as fracture force value.

Available to perform tensile test, tension test, elongation, fracture test as well as extensibility, tearing test as well as peeling test etc.

External tensile tester is introduced with cold-roll & electrostatic spraying process appears grand and neat while internal with
Multi-functional mechanism.

Introduced with advanced and popular LCD display & monitor method, the test data and parameter can be indicated directly;

Multiple-Measurement Unit such as N-KN,MPA are available to be selected (one only for selection);

LCD with backlight source enables this tensile tester applied in dim environment;

It is available to read force peak as well as automatic & manual reset in single test;

Designed with travel limit & overloading shutdown function;

Free stand structure with attractive and neat appearance, more economic and useful;

TECHNICAL PARAMETERS--Digital Display Universal Material Tensile Tester

Tester Model	LDS-50N	LDS-100N	LDS-200N	LDS-500N	LDS-1KN	LDS-2KN	LDS-5KN
Tester Strcutrure	Single-Arm
Display Method	Digital Display
Max. Test Force	50N	100N	200N	500N	1KN	2KN	5KN
Force Test Range	2%—100% of Max.Test Capacity
Test Force Accuracy	≤±1% of Monitoring Value
Crossbeam Travel Measurement	0.01mm (Resolution)
Deformation Accuracy	±1%
Test Velocity Control	0.01-500mm/min
Test Space	700mm
Test Unit Structure	Single-Arm Free-Stand
Main Test Unit	420*280*1580
Gross Weight	Approx. 110Kg
Working Condition	Room Temperature～45℃, Relative Humidity 20%～80%
