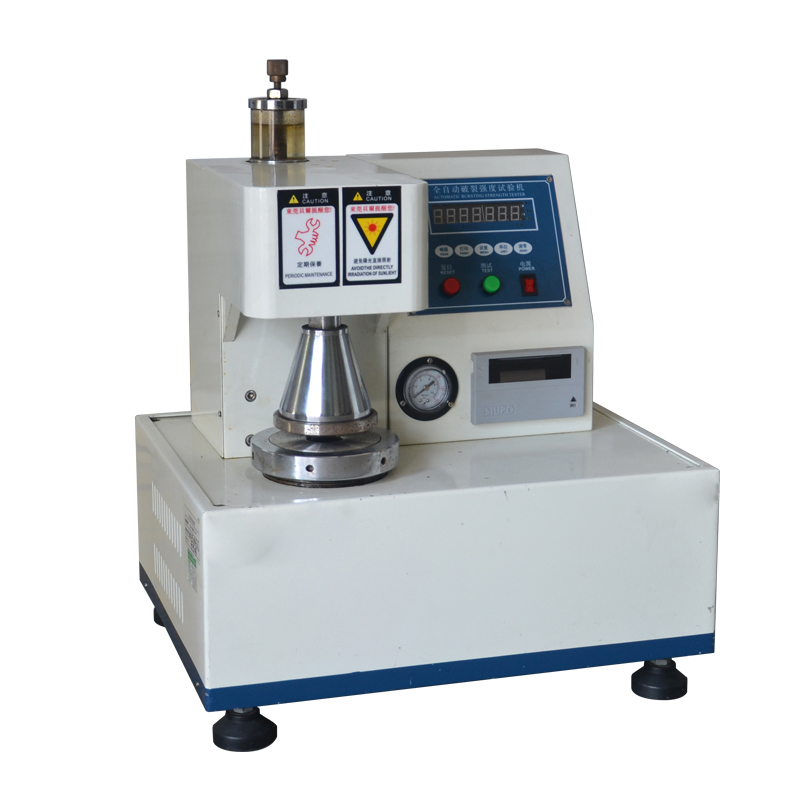

BURSTING STRENGTH TESTING MACHINE

GENERAL INTRODUCTION--BURSTING STRENGTH TESTING MACHINE

Automated Bursting Strength Testing Machine is an international universal Mullen instrument,widely applied for bursting strength test
for packaging materials such as single layer andmutil-layer cardboard, is also available for non-paper materials burst strength test.

Automated Bursting Strength Testing Machine with modern and advanced designed is made with functions such as automatic
Detection, automatic testing, automatic logic operation as well as testing data saving, processing & printing.

FUNCTIONAL FEATURES--BURSTING STRENGTH TESTING MACHINE

Introduced & designed with Large-size LCD monitor to display real-time testing process;

Human-friendly operational interface with visible operational & testing dialogue;

More than 3 measurement units for free shift in test from Ib, Kgf to Kpa;

Testing machine is designed with calendar & time display, also designed with testing data automatic-save & protection in case of
Sudden power supply cut-off;

Available to save in case of sudden power cut-off and double-page display of latest 99-cycle testing records;

Designed with rapid and high quality micro-printer to print the entire and complete test reporting form.

TECHNICAL PARAMETERS --BURSTING STRENGTH TESTING MACHINE

Tester Name	Automated Bursting Strength Testing Machine
Tester Model	LT-BT-100S
Monitoring Method	LED Digital Displaying
Bursting Strength Test Range	250-5600 Kpa
Operational Method	Fully-Automated
Unit Shift	Kgf/cm2,kpa,Psi (Lbs/in2) (free to shift)
Top Ring Hole Internal Diameter	31.50.05mm
Bottom Ring Hole Internal Diameter	31.50.05mm
Resolution	1Kpa
Accuracy	0.5%fs
Film & Convex Part Thickness	2.5mm
Pressure Acceleration	17015ml/min
Test Specimen Holding Force	690Kpa
Overall Dimension	L480W480H700mm
Gross Weight	Approx.70kg
Power Source	AC 220V, 50/60Hz, 2A
Air Source	2 PA
