| Usage: | Paper Testing Instrument |
|---|---|
| Power: | Electronic |
| Brand Name: | Lmet Test |
| Warranty: | 12 Months |
| weight: | 450kg |
| Model Number: | LT-ZC-101 |
| Place of Origin: | China (Mainland) |
| Name: | PAPERBOARD PUNCTURE STRENGTH TESTER |
| Model: | LT-ZC-101 |
Quick Details
Specifications

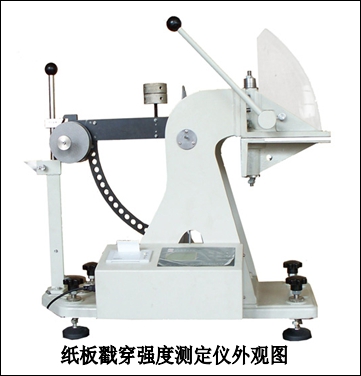

PAPERBOARD PUNCTURE STRENGTH TESTER
GENERAL INTRODUCTION--PAPERBOARD PUNCTURE STRENGTH TESTER
Micro-computer Paperboard Puncture Strength Tester, with special-purpose design and manufacture, is mainly applied for testing
Corrugating paperboard as well as similar special-property material to verify their properties such as puncture-resistance strength
Performance.
Wide Industrial Application in Paperboard Box/Case or special packing material manufacturers/factories as well as Research Institution,
Quality Inspection Bureau etc.
STANDARD COMPLIANCE--PAPERBOARD PUNCTURE STRENGTH TESTER
ISO3036-1975 |
Board -- Determination of Puncture Resistance |
GB/T 2679.7-2005 |
Board -- Determination of Puncture Resistance |
FUNCTIONAL FEATURES--PAPERBOARD PUNCTURE STRENGTH TESTER
the Micro-Computer Controlled Paperboard Puncture Strength Tester is designed with rapid tightly-pressing while the operational
Handle is designed with functions such as automatic reset as well as relevant safety and protection devices.
Made with high-accuracy testing and stable & reliable testing performance as well as automatic calculation function, meanwhile,
All of testing data & mean value data can be printed.
Introduced with LED display to monitor the testing data, visible testing process can be achieved.
It is easy to check and review all of the testing data for a single group specimens test, more than 20 cycle testing data can be saved.
Available to print all testing data and to delete a single testing data from testing data recording center or delete all testing data as
Demanded.
Testing Position |
Measuring Range |
Tolerance |
A Position |
(06) J |
0.05J |
B Position |
(112) J |
0.10J |
C Position |
(124) J |
0.20J |
D Position |
(148) J |
0.50J |
TECHNICAL PARAMETERS--PAPERBOARD PUNCTURE STRENGTH TESTER
Tester Name |
Paperboard Puncture Strength Tester |
Tester Model |
LT-ZC-101 |
Measurement Range |
148)J,4-stage |
A dial-0-6J, Min.Dial value 0.05J | |
Accuracy |
Displayed as Absolute Test Data Value |
Friction Resistance |
0.25j |
Power Source |
AC 220V, 50/60Hz |
Power Consumption |
150W |
Overall Dimension |
L215W215H900 (mm) |
Gross Weight |
Approx.120kg |
