| Model Number: | zlp 630 |
|---|---|
| Brand Name: | xinghe |
| Place of Origin: | China (Mainland) |
| materila: | aluminum/ galvanized |
| lifting height: | 100m |
| color: | silver |
| counter-weight: | 1000kg |
Quick Details
Specifications

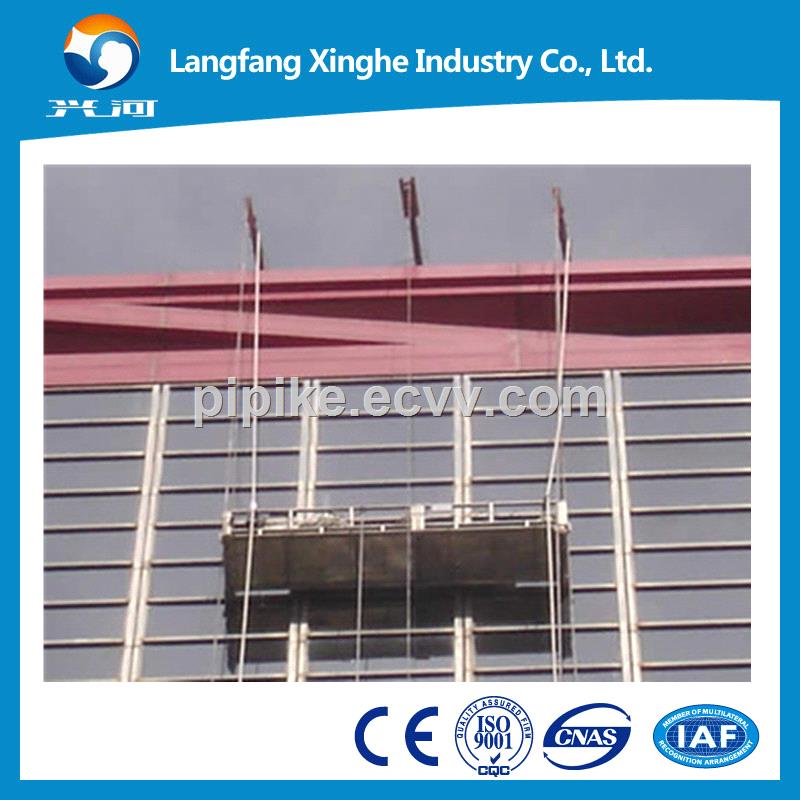

ZLP630 hot galvanized adjustable suspended working platform
Usage:
the suspended platform we manufactured, Standard and non-standard,has been used in many ordinary or special high -rise Building aerial working widely, for example high-rise building construction And renovation, cleaning and repair of ship hull construction, maintenance, Operation and other external.
Item |
ZLP630 |
ZLP800 | ||
Rated load |
630kg |
800kg | ||
Lifting speed |
~9.5m/min |
~8.5m/min | ||
Platform size (length×width×height) |
(2000*3)*690*1180mm |
(2500*3)*690*1180mm | ||
Suspension mechanism |
Front beam extension |
1.1m-1.5m | ||
Height adjustment |
1.45m-1.75m | |||
Hoist |
Type |
LTD63 |
LTD80 | |
Motor |
Type |
Customization |
Customization | |
Power |
1.5KW |
2.0KW | ||
Voltage |
380V |
380V | ||
Speed |
1400n/min |
1400n/min | ||
Braking torque |
15N·m |
15N·m | ||
Safety lock |
Type |
LS30 | ||
Angle of tilted locking rope |
3°—8° | |||
Allowable impact force |
30kN | |||
Weight |
Working platform |
300kg |
370kg | |
Hoist |
52kg×2 |
56kg×2 | ||
Safety lock |
5.5kg×2 |
5.5kg×2 | ||
Suspension mechanism |
320kg (without Counter weight) |
320kg without Counter weight) | ||
Electricity box |
18kg |
18kg | ||
Total weight |
812kg |
872kg | ||
Counter weight |
1000kg (25×40pieces) |
1000kg (25×40pieces) | ||
Wire rope |
Type |
4×31SW+FC-8.3 broken Pulling force≥53500N |
4×31SW+FC-8.6 broken pulling force≥62500N | |
Cable |
Type |
3×2.5+2×1.5YC-5 (one piece) | ||
Company Information:
Langfang Xinghe Industry Co,Ltd, established in 1980 year, is professional in production,sales and Rental of temporary suspended platform in China.
Main product include zlp630,zlp800,zlp1000, Hoist and other components, with CE and ISO Certificate, our porducts has been Exported to Spain, Portugal, Malaysia, Vietnam, Thailand, Philippines,Ukranie, Chile, Peru,Colombia,Honduras etc.
All products are 100% produced by ourselves factory, so the quality and the price can be ensured.
