Mobile Concrete Mixing Plant

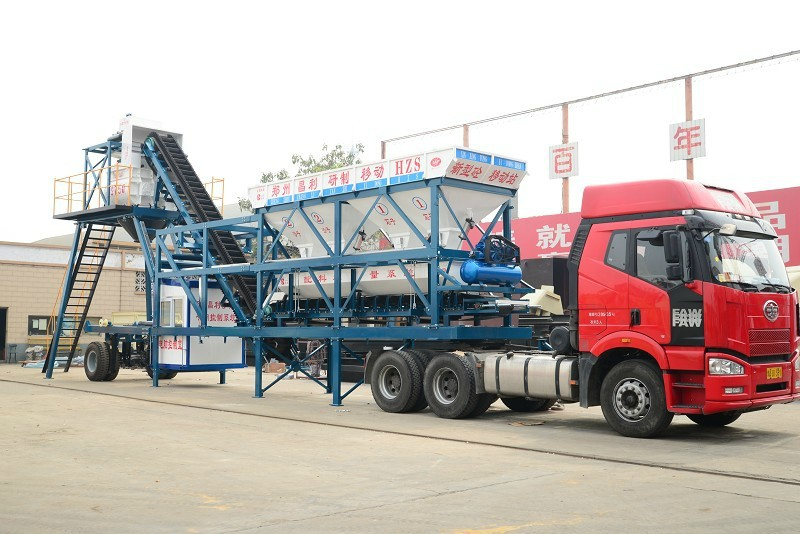

 High Production Movable Batching Plant with Easy Operation

1.Brief Introduction of Movable Batching Plant:

HZS series movable batching plant is one kind of highly integration concrete mixing plant. It is designed for customer which needs to change working site frequently. All components is fixed on the chassis of concrete mixing plant, and it is with wheel which is easily for movement. this plant is completely equipped with concrete batching system, mixing system, weighing system and fully automatic control system.



2. Application:

It occupies less plan and is suitable for medium and small movable engineering construction project, such as water and electricity, road construction, airport, bridge, etc.



3.Parameters:

Model	YHZS25	YHZS35	YHZS50	YHZS75
Capacity	25m3/h	35m3/h	50m3/h	75m3/h
Mixer Model	JS500	JS750	JS1000	JS1500
Mixer Power	18.5Kw	30Kw	37Kw	2*30Kw
Discharge Height	3800mm
Discharge Volume	500L	750L	1000L	1500L
Charging Volume	800L	1200L	1600L	2400L
Mixing Cycle	60S
Max. Agg. Size	80/60mm
Loading Way	Via high angle belt conveyor
No. of Storage Hopper	2	2	2/4	2/4
Agg. Silo Capacity	4m3	4m3	5m3	5m3
Agg. Weighing Accuracy	2000Kg±2%	2000Kg±2%	4000Kg±2%	4000Kg±2%
Water Weighing Accuracy	200Kg±1%	200Kg±1%	250Kg±1%	300Kg±1%
Cement Weighing Accuracy	250Kg±1%	300Kg±1%	500Kg±1%	600Kg±1%
Additive Weighing Accuracy	25Kg±1%	25Kg±1%	30Kg±1%	30Kg±1%
No. of Wheels	2	2	2	2
Dragging Way	360 Degree bayonet	360 Degree bayonet	360 Degree bayonet	360 Degree bayonet
Control System	Fully automatic/Manual
TotalPower	42	56	82	98
Total Weight	22t	28t	32t	35t

4.Feathers of Main Parts In Movable Batching Plant:



Adopt the integral wheel axle, with strong load capacity, to keep the safety of the worker and the equipment when move.



the batching machine adopts the belt weight, pneumatic discharge, fast and exact measure, the hopper size can be customized.



Hopper type belt loading aggregate, with high production efficiency, belt was fixed by sidewall wheel, to keep fast and stable running.



Twin-shaft horizontal mixer, advanced technology, reliable performance and high productivity.



Water, cement and additive measurement can produce a variety of grade concrete.



Full automatic control system, just one person can control the whole plant to save the labor cost.
