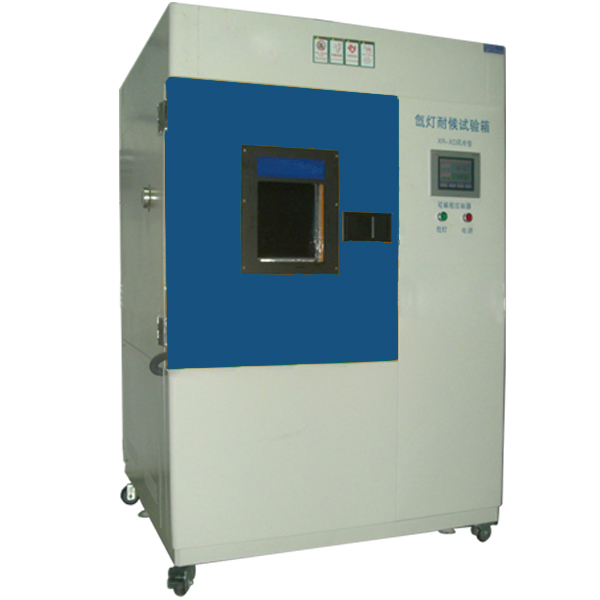

XENON AGING TEST CHAMBER

GENERAL INTRODUCTION---XENON AGING TEST CHAMBER

Integral & Stable Chamber Structure Design;

Full Solar Spectrum Xenon Arc Lamp for Flexible Test Demands;

Standard Air-Cooling Method Water-Cooling as optional;

Intelligent Touch Control Method;

Comprehensive Protective System to Guard Test machine.

FUNCTIONAL FEATURES--XENON AGING TEST CHAMBER

Designed to simulate full solar spectrum that close to real environment for weathering test;

Various options for wave filtering system to simulate desirable environments by providing a stable & perfect light spectrum;

Water spraying system, relative humidity control system, air-cooling or water-cooling methods & Ventilating system;

Excellent xenon lamps with more than 1500 hours life span that determined by using frequency;

the test specimen holder moves around xenon light source  a speed of 2-7 r/min with black panel thermometer BPT or Black
Standard Thermometer BST is mounted on the test specimen shelf;

Integral Chamber structure design include testing chamber, heating system, lighting system, rotary system as well as electrical system. External chamber is made of SUS3042B stainless steel or cold-roll plastic spray process while internal chamber of SUS 304 stainless steel;

Test chamber door designed with silicon rubber for chamber door sealing purpose while xenon testing specimen holder is made of
Full stainless steel through punching forming process and controllable allocating position;

Timing System is introduced for xenon test chamber to record each single testing time cycle  and available to set testing cycle to
Control entire testing process between start and automatic shutdown;

TECHNICAL PARAMETERS---XENON AGING TEST CHAMBER

Tester Model	LT-XD-80	LT-XD-225	LT-XD-500	LT-XD-1000
Tester Type	Air-Cooling	Air-Cooling	Air-Cooling	Air-Cooling
Power Input	AC380V, 50Hz	AC380V, 50Hz	AC380V, 50Hz	AC380V, 50Hz
Power Consumption	4.5 KW	5.0 KW	9.0 KW	11 KW
Xenon Lamp Power	2.5KW	3.0 KW	1.8 KW	1.8 KW
Xenon Lamp Quantity	1 PCS	1 PCS	3 PCS	3 PCS
Xenon Lamp Life	1500 H	1200 H	1500 H	1200H
Radiation Intensity	550W/mm2	550W/mm2	550W/mm2	550W/mm2
Lamp Starter Power	1.8KW	2.0 KW	5.4 KW	5.4 KW
Blackboard Temperature	5090  Controllable
Temperature Distribution	3
Humidity Range	55%HR90%HR
Lamp Center-Specimen-Distance	250300mm
Efficient Enclosure Area	2400 cm2	3600 cm2	6400 cm2	10000m2
Test Zone Size	600400300 mm	600600600 mm	800800800mm	100010001000mm
Water Spraying System	Water Spray & Standby Time can be set as 999 min.
Overall Dimension	7707001600 mm	120012001750 mm	135013001850mm	150015501950mm

STANDARD COMPLIANCE---XENON AGING TEST CHAMBER

GB 2423-24-1995 Simulated solar radiation at ground level

GB 2424.14-1995 Guidance for Solar Radiation Testing

ISO 4892-2:2006 Plastic Methods of Exposure to laboratory light sources Part 2: Xenon-Arc Lamps

ISO 11341-2004  Paints and varnishes - Artificial weathering and exposure to artificial radiation - Exposure to filtered xenon-arc radiation

ASTM G155-05a Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non Metallic materials

ASTM D2565-99 Standard Practice for Operating Xenon Arc Exposure of Plastic Intended for outdoor Applications

ASTM D4459-06 Standard Practice for Xenon Arc Exposure of Plastics Intended for Indoor Applications

ASTM D6695-03b Standard Practice for Xenon-Arc Exposures of Paint and Related Coatings
