| Operating Temperature: | -25- +105 |
|---|---|
| Rated Voltage: | 250V-630V |
| Capacitance: | 2-60uf |
| Package Type: | Surface Mount |
| Application: | Lighting |
| Type: | Polypropylene Film Capacitor |

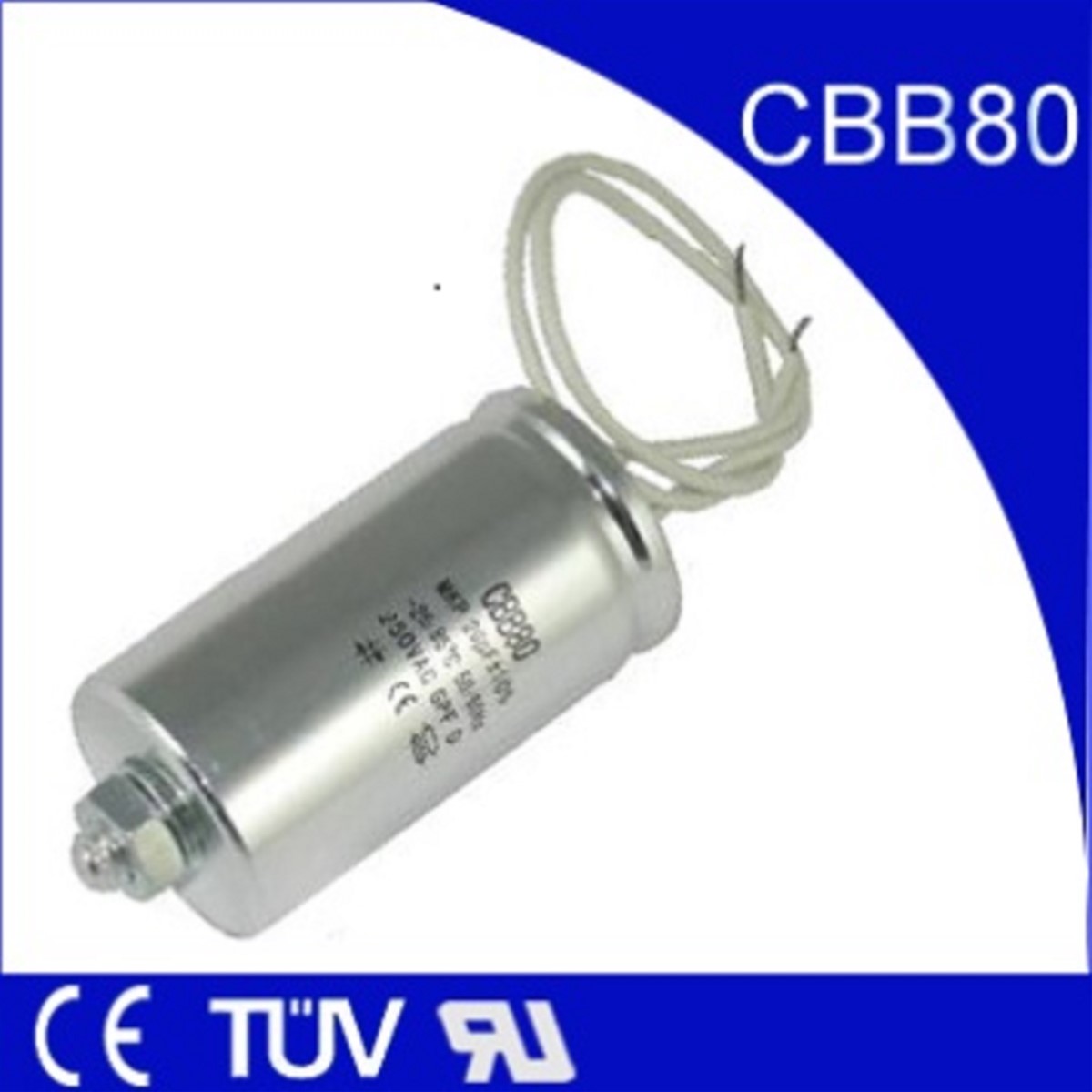

| Model Number: | cbb80 |
| Brand Name: | BSD |
| Place of Origin: | China (Mainland) |
| Capacitance: | 2-60uf |
| Certificate: | CE ,RoHS Certificate |
| Delivery Time: | 2 weeks |
| Service: | OEM and ODM |
| Warranty time: | 3 years |
Quick Details
Specifications
1 Applications
Capacitors of this series are particularly suitable for parallel compensation of discharge lamps.
Dielectric consists of self-healing polypropylene film,Case and cover are made of self-extinguishing
2 Technical Performance
| Rated Voltage | 250V AC 50Hz 280V AC 50Hz |
| Working Temperature range | -25~+85oC |
| Dissipation factor (20oC ,50Hz) |
Tg δ≤ 0.002 |
| Discharge resistor | on request |
| Test voltage between terminals | 2.15 Un for 2 seconds |
| between terminal and case | 2kV for 60 seconds (type test) |
| Reference standards | En 61048; Type B En 61049 |
| Protection | Case in self-extinguishing Plastic material |
| Terminals | Unipolar leads insulated in PVC |
| Mounting devices | M8 stud, clamp, captive feet |
| Capacitance tolerance Different tolerance values are available on request | ±5%; ±10% |
