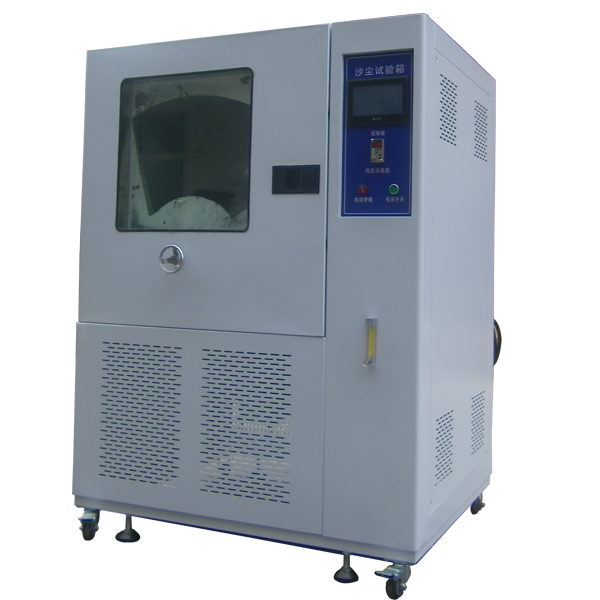

DUST-SAND TEST CHAMBER

GENERAL INTRODUCTION---DUST-SAND TEST CHAMBER

Dust-Sand Test Chamber is defined as one if environmental testing system by simulating dust-sand condition in natural environment,
Provides comprehensive dust-sand test including parameters such as temperature,humidity,air flow,dust-sand intensity dust-sand
Precipitation & air pressure.

Inside of confined test chamber, air flow with certain wind speed blows dusts and sand to reproduce and dust-sand environment
and designed with auxiliary devices such as dust-sand drying device,occillator.this dust-sand test chamber is introduced with
Temperature controlling & regulating device as well as heating device to control temperature of test chamber,while with
Dehumidification device or raising internal temperature of test chamber.to reproduce low humidity and air
Blower to create air flow with certain wind speed & vacuum air pump to decrease internal air pressure.

FUNCTIONAL FEATURESDUST-SAND TEST CHAMBER

this dust-blow test chamber designed with excellent materials and special metal process technology. External machine body as
Well
as door are made of special steel plate with surface plastic spray process.

Top-classs stainless steel plate is selected as internal material and designed into sealing chamber, available to provide an sealing
Space for placing into the testing specimen. Inside of the chamber, Specimen holder as well as other parts are made of stainless
Steel with scientific design and durable performance.

Large-size observing window is opened on the chamber, its inside designed with lighting system that easy to observe the inside
Testing process. Dual-layer silicone rubber sealing strip is used for chamber door, while, special-design testing specimen holder is
Designed inside of the chamber.

Dust-Replace Device is designed on the bottom of testing chamber, easy to replace the used dust and sands.

TECHNICAL PARAMETERSDUST-SAND TEST CHAMBER

Tester Model	LT-XR-800
Internal Dimension  LWH  Mm	800800800
External Dimension   LWH  Mm	14009501600
Net Wire Diameter	50um
Wire-Wire Distance	75um
Internal Chamber & Internal Pipe Dust Indensity	2Kg/m2
Air Flow Velocity	Less Than 2m/s
Talcum Power Consumption	2Kg/m2
External Chamber Material	Plastic Spraying Technology Process
Internal Chamber Material	SUS#304 Stainless Steel Plate
Test Chamber Door	Tempered Glass
